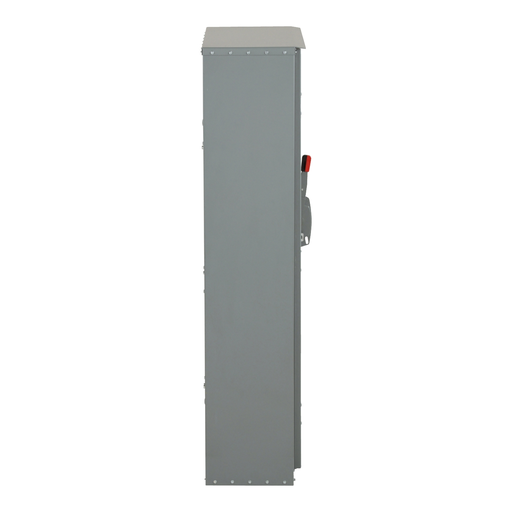

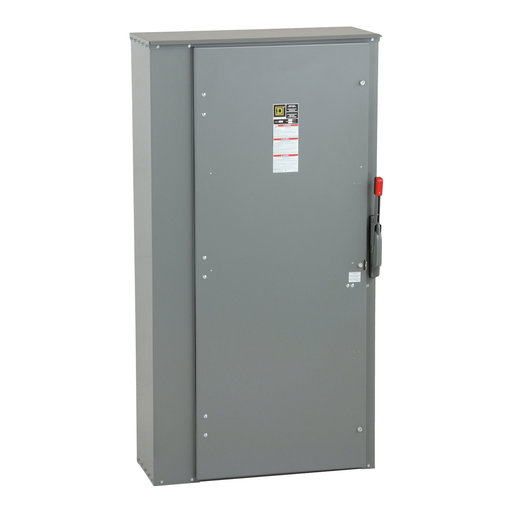

Product image for Square D HU367R 600 VAC 800 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D HU367R 600 VAC 800 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # HU367R | Echo Electric Part # 180545
$8,733.27/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.

Technical Information

Amperage
800 Amp
Applications
HEAVY DUTY
Conductor Size
3/0 AWG-750 kcmil
Current
800 Amp
Disconnect Type
Non-fusible disconnect NULL
Duty Rating
Heavy duty NULL
Enclosure
3R
Enclosure Material
Steel
Fuse Type
L
Line Rated Current
800 A
Material
Steel
Mounting Type
Surface
NEMA Size
3R
Net Weight
166.9 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Short Circuit Current
200 kA
Size
17.75 IN,36.62 IN,69.13 IN
TC Connection
LUGS
Type
SINGLE THROW SAFETY SWITCH,NON-FUSIBLE DISCONNECT
Voltage
600 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901442448
Environmental Conditions
RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR)
GTiN
00785901442448
Product UPC
78590144244
Weight
166.9 kg

Dimensions

Depth
17-3/4 Inch
Height
69.13 Inch
Warranty Length
18 mth
Width
36.62 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
