PHNX 3212138 PT 16 N

Manufacturer: Phoenix Blocks | Catalog # 3212138 | Echo Electric Part # 180708
$6.76/ea
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
233 available

For Delivery

Not in local stock *
Check another branch

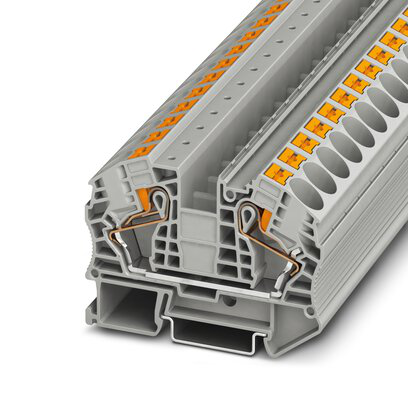

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 76 A, connection method: Push-in connection, Rated cross section: 16 mm², cross section: 0.5 mm² - 25 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

Technical Information

Strip Length
18 mm

Manufacturer Information

Brand
Phoenix Products

General Product Info

12-Digit UPC
463564948230
Color
Gray
Product UPC
46356494823

Dimensions

Length
75.4 mm
Width
12.2 mm
Features
  • In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
  • The compact design and front connection enable wiring in a confined space
  • The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
  • Tested for railway applications
Approvals
  • BV
  • VDE Zeichengenehmigung
  • cULus Recognized
  • EAC Ex
  • EAC
  • IECEx
  • LR
  • PRS
  • ATEX
  • IECEE CB Scheme
  • DNV GL
  • CSA
  • UL Recognized
  • cUL Recognized
