PHNX 3212064 PTPOWER 35

Manufacturer: Phoenix Blocks | Catalog # 3212064 | Echo Electric Part # 180722
$14.34/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days

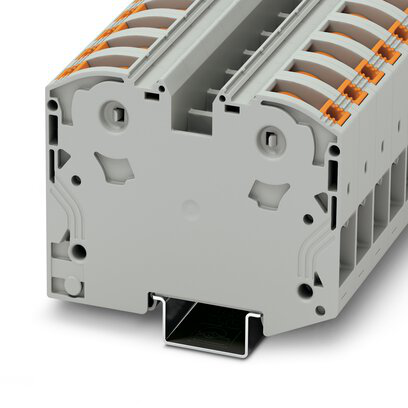

High-current terminal block, nom. voltage: 1000 V, nominal current: 125 A, connection method: PowerTurn connection, 1 level, cross section: 2.5 mm² - 35 mm², mounting type: NS 35/15, color: gray

Technical Information

Amperage
125 Amp
Connection Type
PowerTurn
Mounting Type
NS 35/15
Strip Length
25 mm
Temperature Rating
-60 to 110 degrees C
Voltage
1000 Volt

Manufacturer Information

Brand
Phoenix

General Product Info

12-Digit UPC
463567260162
Color
Gray
Product UPC
46356726016

Dimensions

Length
91.6 mm
Width
16 mm
Features
  • Quick and easy connection is now also possible for large conductors with the high-current terminal block
  • The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
  • In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
  • The compact design and front connection enable wiring in a confined space
Approvals
  • BV
  • cULus Recognized
  • EAC
  • DNV GL
  • CSA
  • UL Recognized
  • cUL Recognized
