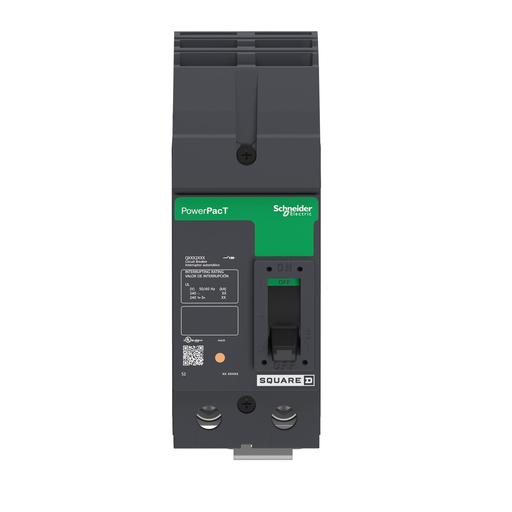

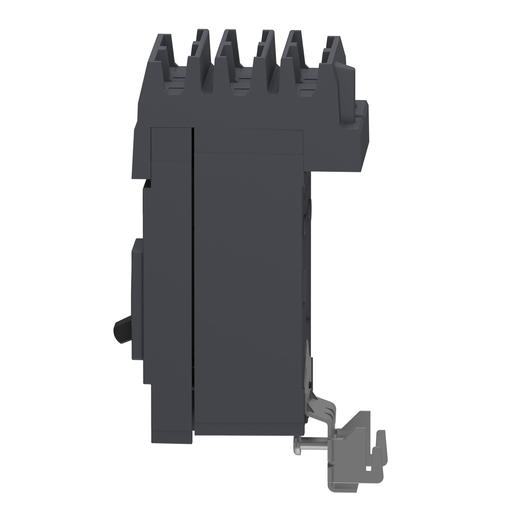

Product image for Square D QBA221501 240 Volt 150 Amp Molded Case Circuit Breaker
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D QBA221501 240 Volt 150 Amp Molded Case Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # QBA221501 | Echo Electric Part # 180773
$528.00/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 150A, 2 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Technical Information

Amperage
150 Amp
Applications
PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Frame
B
Interrupt Rating
10 kAIC
Line Rated Current
150-150 A
Mounting Type
I-Line
Number of Poles
2 Pole
Standard
CSA,NEMA,NOM-003-SCFI-2000,UL
Strip Length
22 mm
TC Connection
I-LINE CONNECTION LINE AB-LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER
Trip Point
2400-2400 A
Trip Range
1200 A,150 A,2400 A
Trip Type
THERMAL-MAGNETIC
Type
CIRCUIT BREAKER
Voltage
240 Volt

Manufacturer Information

Brand
Square D
Sub Brand
POWERPACT

General Product Info

12-Digit UPC
785901405122
GTiN
00785901405122
Product UPC
78590140512

Dimensions

Depth
3.93 Inch
Height
3 Inch
Length
22 mm
Warranty Length
18 mth
Width
3.00 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,NOM,UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • QBMIK
  • QBPA
