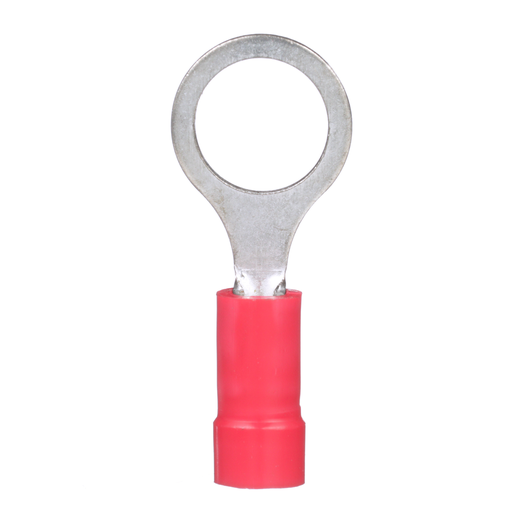

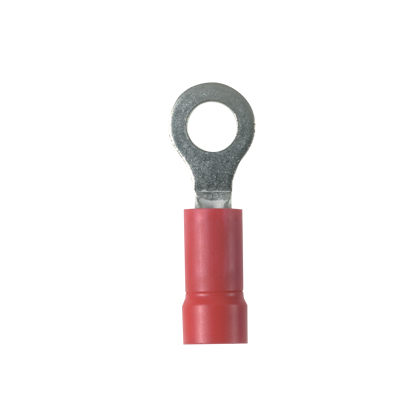

Product image for Panduit PV18-56R-CY Ring Terminal, Vinyl Insulated-Funnel Entry
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Panduit PV18-56R-CY Ring Terminal, Vinyl Insulated-Funnel Entry

Manufacturer: Panduit Corp | Catalog # PV18-56R-CY | Echo Electric Part # 180951
$192.86/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page
Ring Terminal, 22 – 18 AWG, 5/16" stud size, vinyl insulated, funnel entry, standard package.

Technical Information

Barrel Length
0.44 in
Barrel Type
Funnel
Color Coding
Red
Conductor Size
22-18 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
167 degrees F
Size
5/16"
Standard
CSA,E2186,UL
TC Connection
Funnel Entry
Temperature Rating
221 degrees F
Tongue Thickness
0.03 in
Tongue Width
0.46 in
Type
Ring Terminal
Voltage
600.0
Wire Size
22-18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983689217
Color
Amber,Green,Red,White
Finish
Rust-Proof Plating, Vinyl Coated
GTiN
00074983689217
Product UPC
07498368921
UNSPSC
39121409

Dimensions

Outer Diameter
0.15 in
Overall Length
1.11 in
Width
11.7 mm

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL Listed 587H E52164, CSA Certified LR31212
