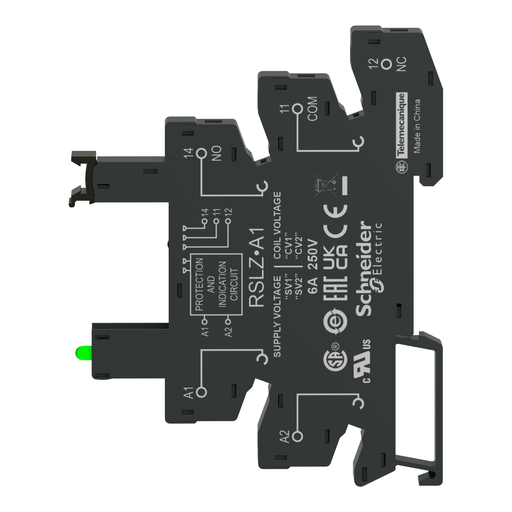

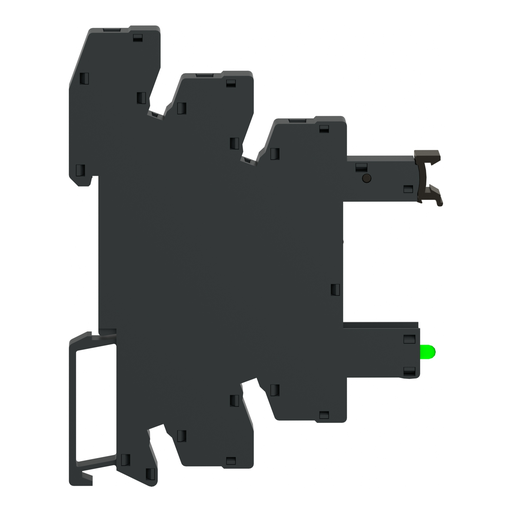

SQD RSLZVA3 socket equipped with LE

Manufacturer: Square-D / Schneider | Catalog # RSLZVA3 | Echo Electric Part # 181005
$31.05/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
"This Harmony RSL plug-in socket with LED indicator has a rated voltage of 110V AC/DC." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Applications
PLUG-IN RELAY RSL 1 C/O 60 V DC-PLUG-IN RELAY RSL
Line Rated Current
6 A
Net Weight
0.023 kg
Operating Temperature
-40-55 degrees C
Size
6.2 MM,78.6 MM,95 MM
Standard
IEC 61984,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
CONNECTOR, 1 X 0.2...1 X 2.5 MMA AWG 24...AWG 14) FLEXIBLE WITH CABLE END-CONNECTOR, 1 X 0.2...1 X 2.5 MMA AWG 24...AWG 14) SOLID WITHOUT CABLE END
Type
FLAT,SOCKET
Voltage
300 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RSLZ

General Product Info

12-Digit UPC
606480078043
GTiN
03606480078040
Product UPC
78590145837
Weight
0.023 kg

Dimensions

Height
78.6 mm
Warranty Length
18 mth
Width
6.2 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,GOST
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
