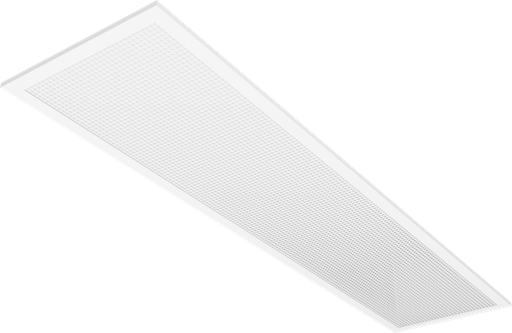

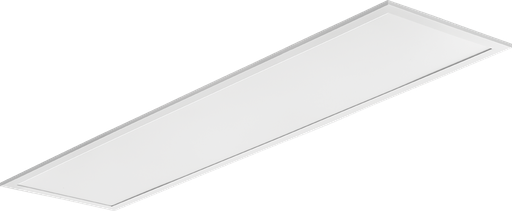

Product image for LITH CPX 1X4 ALO7 SWW7 M4 LED Flat
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LITH CPX 1X4 ALO7 SWW7 M4 LED Flat

Manufacturer: Lithonia Lighting | Catalog # CPX1X4ALO7SWW7M4 | Echo Electric Part # 181248
$100.21/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
17 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
CPX™ from Lithonia lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. The configurable CPX sets the bar for what a standard panel can do. This CPX offers options for factory installed emergency battery packs and pre-wired whips, an A12 prismatic lens for even better glare control, as well as wireless, single-room lighting controls through SensorSwitch™ JOT. CPX is the perfect choice for budget-conscious schools, commercial office, and retail footprint projects.To view the Contractor Select™ CPX configurations click here.CPX is now available with the NEW SensorSwitch JOT!Wireless, app-free solution to single room lighting controlAbsolutely no 0-10V control wires and no mobile apps are needed to install and pair JOT enabled productsLightning speed installation right out of the box

Technical Information

Applications
Education,Government,Hospitality,House Of Worship,Offices & Banks,Residential,Retail
Average Rated Life
60,000 hr
Color Rendering Index
80
Color Temperature
3500 K
Correlated Color Temp
3500 K
Dimmable?
Yes
Lamp Life
50,000 hr
Lamp Type
LED
Lens Color
White
Lumens
2,500 Lumen
Material
Steel
Mounting Type
Recessed,Surface,Suspended
Power Source
Hardwired
Size
47.875x11.75x1.68
Style
Traditional
TC Connection
Hardwired
Type
Flat Panel
Voltage
120 Volt
Wattage
35.7 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194994568063
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Semi-Gloss
Fixture Type
Flat Panel
GTiN
00194994568063
Product UPC
19499456806
Shape
Rectangle
Weight
7.2 lb

Dimensions

Height
1.7 Inch
Length
47.8 Inch
Width
11.8 in

Certifications and Compliance

Country of Origin
China,China
Features
  • TECHNOLOGY: CPX's low-profile design provides increased installation flexibility especially in restricted plenum spaces
  • ENERGY SAVINGS: DesignLights Consortium® (DLC) qualified product
  • COMPATIBLE CONTROLS: SensorSwitch wireless dimming (JOT) or luminaire-embedded occupancy sensor control (JOTVTX15) with JOT pairing.
  • RATINGS: CSA certified to meet US and Canadian standards. Damp location listed. IC rated.
  • VOLTAGE: 120 volts allowing for use in many applications usch as schools, offices, retail, and other commercial spaces.
  • HOURS OF LIFE: Greater than 70% LED lumen maintenance at 50,000 hours (L70>50,000).
  • INSTALLATION: The back plate includes integral T-bar clips for installation into T-grid ceilings
  • BATTERY: Emergency battery back-up not included in this version
  • WARRANTY: Buy with confidence with a 5-year limited warranty
  • Length: 47.8\" 121.4cmWidth: 11.8\" 30.0cmDepth: 2.1\" 5.4cm
Applications
  • Education
  • Government
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Residential
  • Retail
Standards
  • CSADLC Premium
  • DLC Standard
