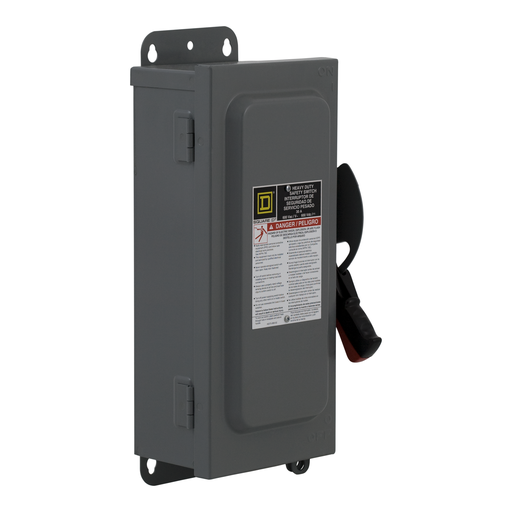

Product image for Square D H3612A 600 VAC 30 Amp 3-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch
Email

Square D H3612A 600 VAC 30 Amp 3-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # H3612A | Echo Electric Part # 181311
$1,235.72/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
Safety switch, heavy duty, fusible, 30A, 3 poles, 20 hp, 20 hp, 600 VAC/DC, NEMA 12K

Technical Information

Action
SINGLE THROW
Amperage
30 Amp
Applications
HEAVY DUTY
Conductor Size
12-6 AWG (AL)/14-6 AWG (CU)
Current
30 Amp
Disconnect Type
Fusible disconnect
Duty Rating
Heavy duty
Enclosure
12K
Enclosure Material
Stainless Steel
Enclosure Rating
12K
Fuse Type
H Or K,R Or J
Line Rated Current
30 A
Material
Steel
Mounting Type
Surface
NEMA Size
12K
Net Weight
8 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Short Circuit Current
10 kA
Size
10.5 IN,16.5 IN,7 IN
TC Connection
LUGS
Type
SINGLE THROW SAFETY SWITCH
Voltage
600 Volt
Wire Size
AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901481973
GTiN
00785901481973
Product UPC
78590148197
Weight
17.64 lb

Dimensions

Depth
7 Inch
Height
16-1/2 Inch
Warranty Length
18 mth
Width
10.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
USA
