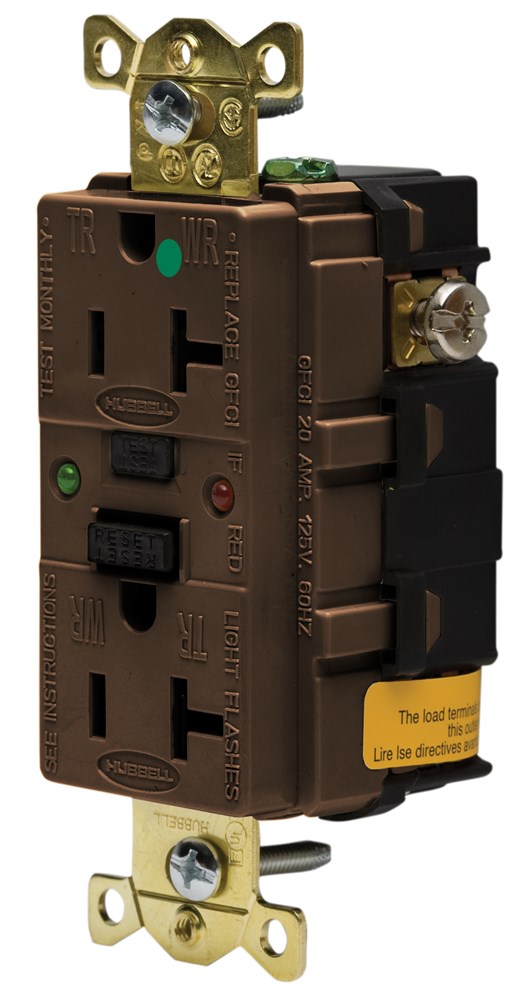

Hubbell GFR8300SG20A 125V IND HG TAMPER ST GFCI, BROWN

Manufacturer: Hubbell Wiring Device | Catalog # GFR8300SG | Echo Electric Part # 181316
$123.00/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Hubbell Wiring Device, Power Protection Products, Receptacle, GFCI, Safety Grade Commercial Hospital Grade, Self Test, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown

Technical Information

Amperage
20 Amp
Applications
Hospital Grade
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Frequency
60 Hz
Grade
Hospital
Grounding
Self
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-30 To 150 degrees F
Size
Standard Sized
Standard
CEC,NEC®,UL
Style
Standard
TC Connection
Back and Side Wired Terminal Screws
Type
Decorator, Tamper-Resistant
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade GFCI Receptacles

General Product Info

12-Digit UPC
783585441054
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected by Additional Means, Weather-Resistant
GTiN
00783585441054
Product UPC
78358544105
Weight
0.35 lb

Dimensions

Width
3.000 in

Certifications and Compliance

Country of Origin
South Korea
Features
  • 10kA Short Circuit Current Rating
  • Self-Testing, Tamper and Weather Resistant, Self Grounding
  • Limits improper access to energized contacts
  • Power indication
  • Ground fault indicator
  • No power at face if reverse wired
Industry Standard(s)
  • Fed.Spec
  • Meets All NEC® Requirements
