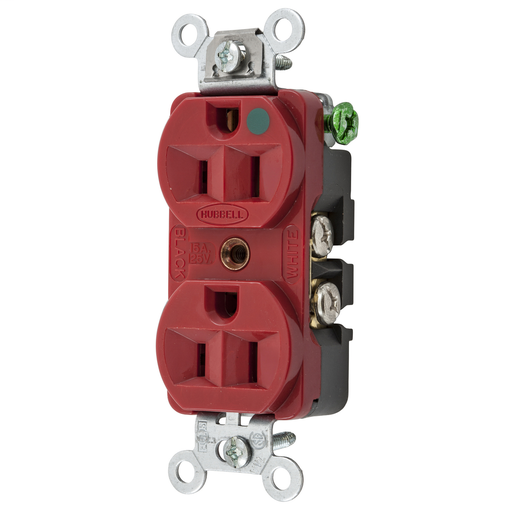

Product image for Hubbell HBL8200HREDDUP Receptacle, COM/HG, 15A 125V, 5-15R, RD
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL8200HREDDUP Receptacle, COM/HG, 15A 125V, 5-15R, RD

Manufacturer: Hubbell Wiring Device | Catalog # HBL8200HRED | Echo Electric Part # 181335
$37.84/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Compact Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15R, Red, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Hospital Grade
Base Material
PBT,PBT
Conductor Size
14-12 AWG
Contact Material
Brass,Brass
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon,Nylon
Flamability Class
UL 94 V-0
Grade
Compact Hospital
Horsepower
0.5 hp
Material
Plastic
Mounting Type
Screw, Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Screw Material
Brass
Size
Standard
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Thermoplastic Polyester Face
TC Connection
Screw Terminals
Type
Receptacle
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Receptacles

General Product Info

12-Digit UPC
783585247502
Color
Red
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
GTiN
00783585247502
Product Series
Hospital Grade
Product UPC
78358524750
Weight
0.25 lb

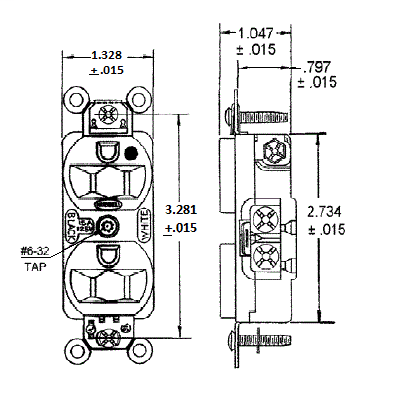

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
USA
Industry Standard(s)
  • CSA Certified, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Features
  • Slender/compact design
  • Impact-resistant finder groove face
  • Triple wipe contacts
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-0
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
