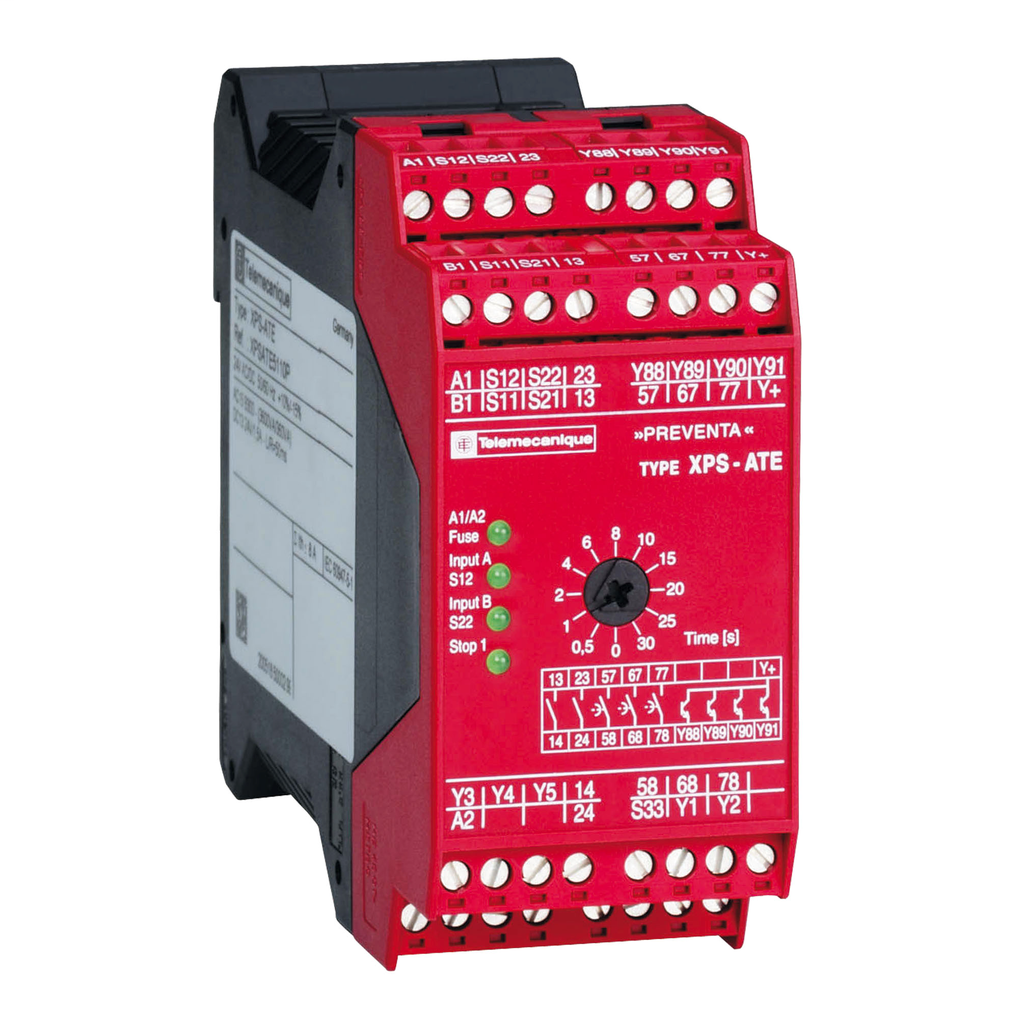

Product image for SQD XPSATE3410P SAFETY RELAY WITH TIMING FUNCTION, 120 V
Image thumbnail 0
Image thumbnail 1
Email

SQD XPSATE3410P SAFETY RELAY WITH TIMING FUNCTION, 120 V

Manufacturer: Square-D / Schneider | Catalog # XPSATE3410P | Echo Electric Part # 181354
$670.78/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
This XPSATE safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of PL e/Category 4 (instantaneous safety outputs), PL d/Category 3 (time delayed safety outputs) conforming to EN/ISO 13849-1. It meets also the requirements of SILCL3 (instantaneous safety outputs) and SILCL2 (time delayed safety outputs) conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring Emergency stop circuits conforming to EN/ISO 13850 and EN/IEC 60204-1 standards, and electrical monitoring of switches in protection devices conforming to EN/ISO 14119 standard. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.

Technical Information

Applications
EMERGENCY STOP BUTTON WITH 2 NC CONTACTS,FOR EMERGENCY STOP AND SWITCH MONITORING
Contact Rating
1 A 24 V DC-13)50 MS RELAY OUTPUT,180 VA HOLDING AC-15 C300 RELAY OUTPUT-1800 VA INRUSH AC-15 C300 RELAY OUTPUT
Output
RELAY INSTANTANEOUS OPENING, 2 NO, VOLT-FREE-RELAY TIME DELAY OPENING, 3 NO, VOLT-FREE
Power Supply
115 V AC - 15...15
Standard
EN/IEC 60204-1,EN/IEC 60947-5-1,EN/ISO 13850
TC Connection
CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1 MMA SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.25...2 X 1 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.5...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL
Type
PREVENTA SAFETY MODULE

Manufacturer Information

Brand
Preventa

General Product Info

12-Digit UPC
785901853800
GTiN
03389119004053
Product UPC
78590185380
Weight
0.84 lb

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,TV,UL
Country of Origin
Indonesia
