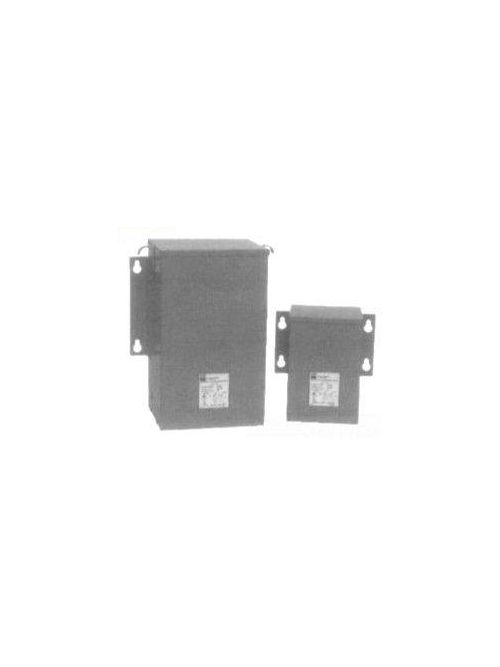

Product image for SHD HZ123000 3KVA 240X480-120 NEMA
Image thumbnail 0
Image thumbnail 1
Email

SHD HZ123000 3KVA 240X480-120 NEMA

Manufacturer: Appleton Electric | Catalog # HZ123000 | Echo Electric Part # 181374
$2,885.32/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page
HZ Series industrial control transformers are designed for applications where cost or heat issues make mounting the transformer outside the control panel necessary. This encapsulated transformer has copper windings for industrial applications. The UL Class +180°C insulation system allows for a +80°C temperature rise under full load. Standard models are UL Listed/NEMA Type 3R (rain proof); however custom models are available for UL Listed/NEMA Type 4, 4X and 12 requirements.

Technical Information

Applications
The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary.
Enclosure
NEMA 4/12
Number of Phases
1 Phase
Primary Voltage
240/480, 230/460, 220/440 Volt Primary
Secondary Voltage
120/115/110 Volt Secondary
Temperature Rating
80 DEG Temperature Rise under full load
Type
HSZ Series Industrial Control Transformers
Wattage
2000 Watt

Manufacturer Information

Brand
SolaHD

General Product Info

12-Digit UPC
783472571055
GTiN
00783472571055
Product UPC
78347257105

Dimensions

Height
12 Inch
Length
7 Inch
Width
10 in

Certifications and Compliance

Buy American Compliant
Y
Features
  • cULus, RoHS
  • UL Class +180°C insulation system
  • +80°C temperature rise under full load
  • Encapsulated housing with copper windings
  • Two case styles available: UL-3R (Design Style 1) and NEMA-4, 4X, 12 (Design Style 2)
  • UL Listed/NEMA Type 3R (rain proof)
  • Optional: UL Listed/NEMA Type 4 (wash down & dust proof)
  • Optional: UL Listed/NEMA Type 4X (corrosion proof)
  • Optional: UL Listed/NEMA Type 12 (dust proof)
