Product image for Square D LA4KA1U 220 to 250 VAC RC Circuit Type Contactor and Relay Suppressor Module
Email

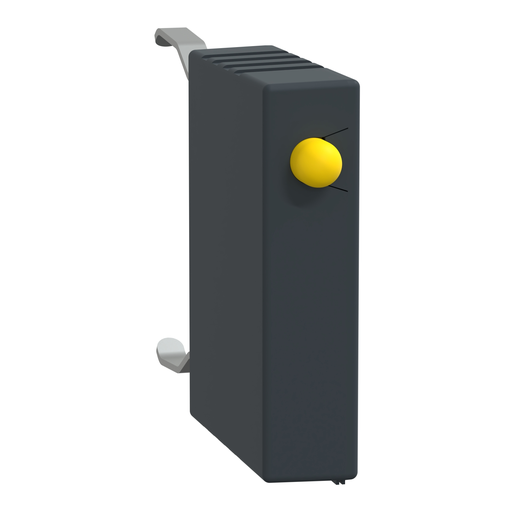

Square D LA4KA1U 220 to 250 VAC RC Circuit Type Contactor and Relay Suppressor Module

Manufacturer: Square-D / Schneider | Catalog # LA4KA1U | Echo Electric Part # 181462
$19.04/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys K suppressor module, for contactors LC.K, CA2K. To be used with 110-250V AC control circuits, it provides RC protection limiting the transient voltage to 3 Uc max. Clip-on mounting on front of contactor (no tools required), it incorporates a power-on LED indicator. Sold in lots of 5 units. It conforms to RoHS/REACh regulation.

Technical Information

Applications
CA2K;LC1K;LC7K
Coil Voltage
110/250 VDC
Indicator
LED
Mounting Type
Clip-On
Net Weight
0.01 kg
Operating Temperature
-25-50 Adegrees C
Range
TeSys
Size
0.87 in
Standard
CSA C22.2 No 60947-5-1,EN/IEC 60947-5-1,UL 60947-5-1
Storage Temperature
-50-80 degrees C
Type
Suppressor module;RC circuit

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS,TESYS K

General Product Info

12-Digit UPC
389110230096
GTiN
03389110230093
Product UPC
78590110517
Weight
0.01 kg

Dimensions

Depth
22 mm
Height
26 mm
Warranty Length
18 mth
Width
6 mm

Certifications and Compliance

Certifications
CE,CSA,UKCA,UL
Country of Origin
Indonesia
Compatible Products
  • LC1K0910M7
  • LC1K0910P7
  • LC1K0610M7
  • LC1K09004U7
  • CA2KN22M7
  • LC1K0901M7
  • LC1K0610P7
  • LC1K0601M7
  • LC1K1210P7
  • LC1K1210M7
  • LC1K0901P7
  • CA2KN31M7
  • CA2KN22P7
  • CA2KN40M7
  • LC1K09004P7
  • LC1K1201P7
  • LC1K1610P7
  • CA2KN40P7
  • LC1K0910U7
  • LC1K0601P7
  • CA2KN31P7
  • LC1K09004M7
  • LC1K09008P7
  • LC1K1201M7
  • LC2K0901P7
  • LC2K0910P7
  • LC1K09008M7
  • LC2K0610P7
  • CA2KN22U7
  • LC2K0901M7
  • LC1K1210U7
  • LC1K0901U7
  • LC1K0610U7
  • LC2K0601P7
  • LC1K16106M7
  • LC2K0910M7
  • LC1K12004P7
  • LC2K0601M7
  • LC1K0601U7
  • LC1K0610L7
  • LC2K0901U7
  • LC2K0610M7
  • CA2KN31U7
  • LC1K0910L7
  • CA2KN40U7
  • CA2KN223P7
  • LC2K0601U7
  • LC1K09008U7
  • CA2KN22L7
  • LC1K1210L7
  • LC2K0610U7
  • LC2K1201U7
  • LC2K0910U7
  • LC2K1201M7
  • LC1K090087M7
