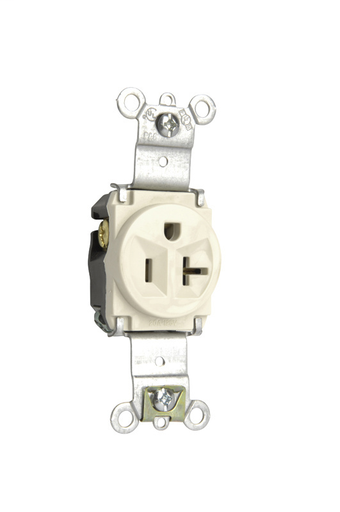

Pass & Seymour 5361-LA Single Receptacle, HD Spec Grade, 20A 125V, Back & Side Wired - Light Almond

Manufacturer: Pass & Seymour / Legrand | Catalog # 5361-LA | Echo Electric Part # 181600
$39.27/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
9 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
Heavy-Duty Spec Grade Single Receptacle, Back & Side Wire, 20amp 125volt, Red

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Commercial Specification
Material
Nylon
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.32 L x 1.093 W x 3.68 H In
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Heavy Duty
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007536096
Color
Light Almond
GTiN
00785007536096
Product UPC
78500753609
UNSPSC
39121406

Dimensions

Depth
1.093 Inch
Height
1.68 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CUL,FEDSPEC
Country of Origin
Mexico
Certifications
  • cUL Listed
  • Federal Spec Listed
Features
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
