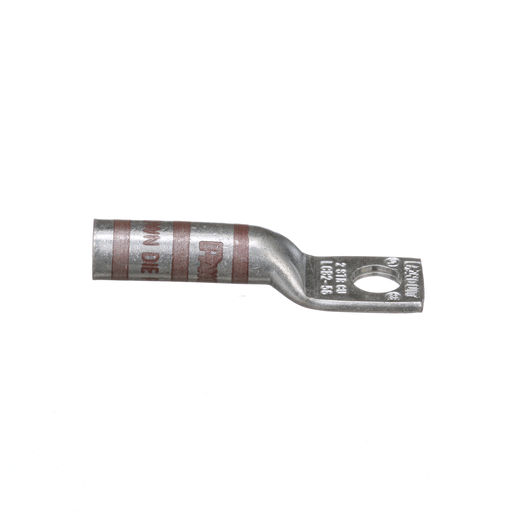

Product image for Panduit LCB2-56-Q 1-Hole #2 AWG 5/16 Inch Stud Hole Copper Compression Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit LCB2-56-Q 1-Hole #2 AWG 5/16 Inch Stud Hole Copper Compression Lug

Manufacturer: Panduit Corp | Catalog # LCB2-56-Q | Echo Electric Part # 181679
$924.93/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual
The LCB2-56-Q Tin-Plated Copper Compression Lug, one-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.

Technical Information

Angle
Straight
Barrel Length
1.16 in
Barrel Type
Long
Cable Size
AWG
Color Coding
Brown
Material
Copper
Number of Holes
1 Hole
Size
#2 AWG Code
Stud Size
0.3125 in
Tongue Thickness
0.1 in
Tongue Type
Standard
Tongue Width
0.66 in
Type
Type LCB
Voltage
35000 Volt

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983901814
Color
Brown
Finish
Tin Plated
GTiN
00074983901814
Product UPC
07498390181

Dimensions

Outer Diameter
0.42 in
Overall Length
2.27 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved, NEBS Level 3
