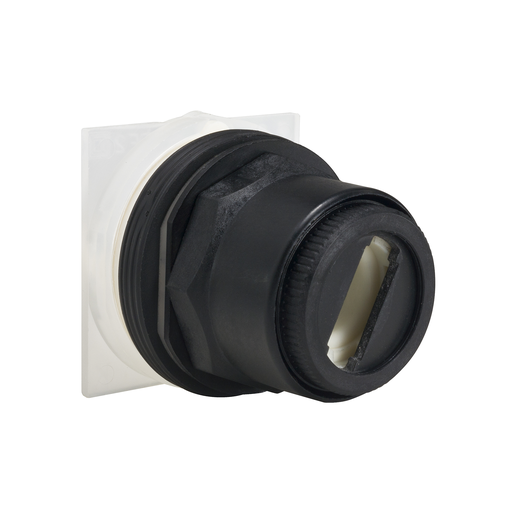

Product image for Square D 9001SKS73 30 mm 3-Position Maintained/Maintained/Momentary Non-Illuminated Selector Switch Operator
Email

Square D 9001SKS73 30 mm 3-Position Maintained/Maintained/Momentary Non-Illuminated Selector Switch Operator

Manufacturer: Square-D / Schneider | Catalog # 9001SKS73 | Echo Electric Part # 181687
$134.19/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Selector switch head, Harmony 9001SK, plastic, without handle, 30mm, 3 positions, spring return right to center

Technical Information

Action
SPRING RETURN (RIGHT TO CENTRE)
Actuator
3 positions
Bezel Material
Plastic
Contact Configuration
Without contact block
Enclosure
NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X-NEMA 6
Net Weight
0.059 kg
Operating Temperature
-25-70 Adegrees C
Size
1.18 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-70 degrees C
Type
Selector switch
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
9001SK

General Product Info

12-Digit UPC
785901959908
Environmental Conditions
WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
00785901959908
Product UPC
78590195990
Weight
0.13 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
NEMA,UL 508
Country of Origin
Mexico
