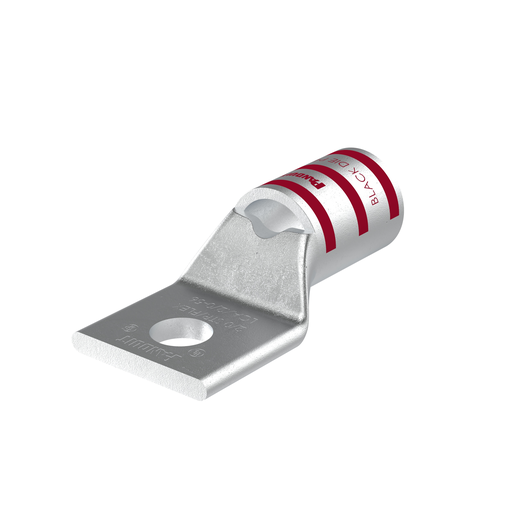

Product image for Panduit LCAX2-56-E Pan-Lug™ Copper 1 Hole Straight Tongue Compression Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit LCAX2-56-E Pan-Lug™ Copper 1 Hole Straight Tongue Compression Lug

Manufacturer: Panduit Corp | Catalog # LCAX2-56-E | Echo Electric Part # 181689
$907.09/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual
The LCAX2-56-E Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.

Technical Information

Angle
Straight
Barrel Length
0.59 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Brown
Material
Copper
Number of Holes
1 Hole
Size
#2 AWG Class B, C, G, H, I, K, M and DLO
Stud Size
5/16 in
Tongue Thickness
0.11 in
Tongue Type
Standard
Tongue Width
0.7 in
Type
Preterminated Copper Trunk, Category 6
Voltage
35,000 Volt

Packaging

Pkg Qty
20

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983442966
Color
Light Brown
GTiN
00074983442966
Product UPC
07498344296

Dimensions

Outer Diameter
0.47 in
Overall Length
1.63 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico,USA
Standards and Certifications
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Prop 65
  • No
