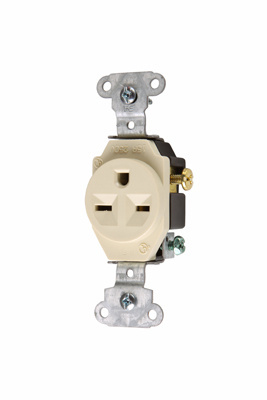

Product image for Pass & Seymour 5651-I Heavy-Duty Spec Grade Single Receptacle, Side Wire, 15A 250V - Ivory
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 5651-I Heavy-Duty Spec Grade Single Receptacle, Side Wire, 15A 250V - Ivory

Manufacturer: Pass & Seymour / Legrand | Catalog # 5651-I | Echo Electric Part # 181770
$8.47/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
20 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
Heavy-Duty Spec Grade Single Receptacle Side Wire 15amp 250volt Light Almond

Technical Information

Amperage
15 Amp
Applications
Commercial
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Federal Specification
Material
Nylon
NEMA
6-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.32 L x 1.08 W x 3.68 H In
Standard
NEC®
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Single Receptacles
Voltage
250 Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007565119
Color
Natural
Finish
Matte
GTiN
00785007565119
Product UPC
78500756511
UNSPSC
39121406

Dimensions

Depth
1.08 Inch
Height
3.28 Inch
Width
1.38 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • One-piece heat-treated triple-wipe brass power contacts.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
  • One-piece brass triple-wire power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
