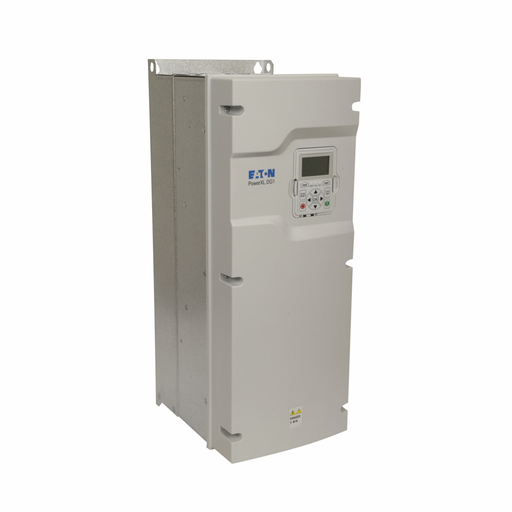

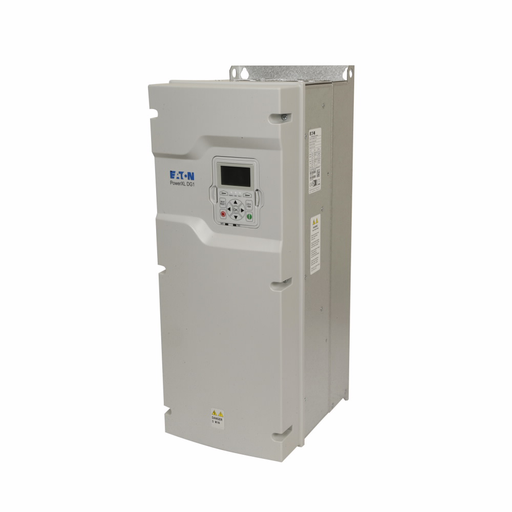

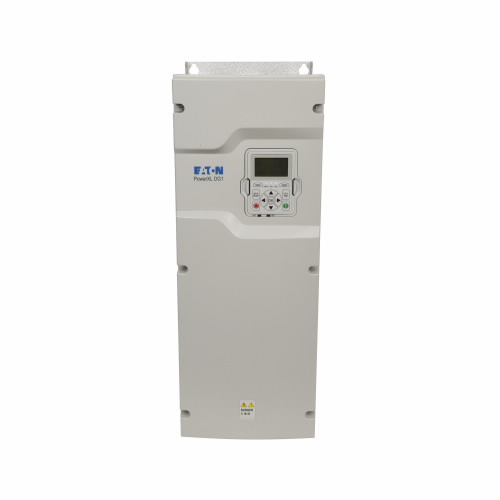

Product image for ETN DG1-34072FN-C21C POWERXL DG1 AF
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

ETN DG1-34072FN-C21C POWERXL DG1 AF

Manufacturer: Cutler-Hammer / Eaton | Catalog # DG1-34072FN-C21C | Echo Electric Part # 181789
$14,988.12/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Eaton PowerXL DG1 variable frequency drive, 380-500V input 37 kW 50 Hp CT 3PH 50/60 Hz 72A output IP21/type 1 enclosure FR5 LCD Internal EMC filter and DC choke EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU ports 2 exp slots

Technical Information

Amperage
72 Amp HD, 87 Amp ND
Applications
General Purpose, Supporting Protocol for EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU communication
Control Type
Variable Frequency
Display Type
LCD
Enclosure
IP21,Type 1,Type 1 Enclosure
Enclosure Rating
1, IP21
Enclosure Type
NEMA 1, IP21
Frame
5
Frequency
50-60 Hz
Horsepower
50 hp
Input Voltage
380 V
IP Rating
IP21
Material
Coated Board
NEMA Size
1
Number of Phases
3 Phase
Power Rating
37 kW
Temperature Rating
50 degrees C Ambient
Type
Variable frequency drive
Voltage
380-500 VAC Mains, 400/500 VAC Output/Input
Wattage
37 kW

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786685878867
GTiN
00786685878867
Product UPC
78668587886
Weight
80 lb

Dimensions

Height
16-1/4 Inch
Length
27-3/4 Inch
Width
14.5 in
