ETN DG1-34140FN-C21C POWERXL DG1 AF

Manufacturer: Cutler-Hammer / Eaton | Catalog # DG1-34140FN-C21C | Echo Electric Part # 181793
$27,657.84/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual

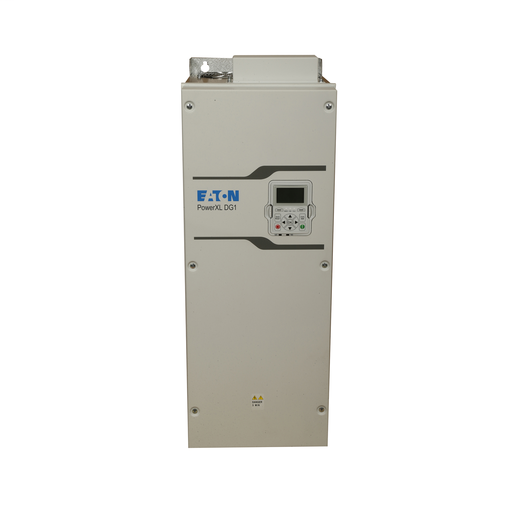

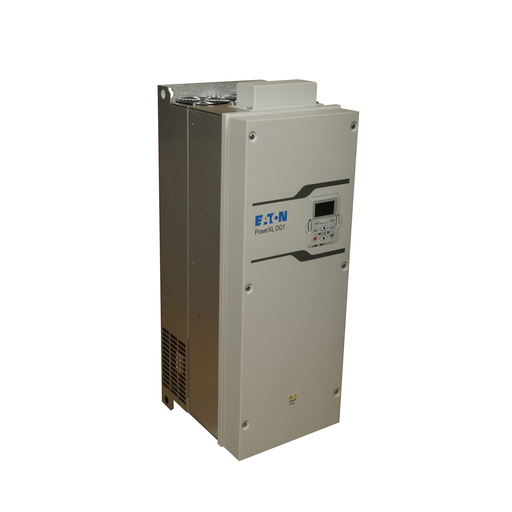

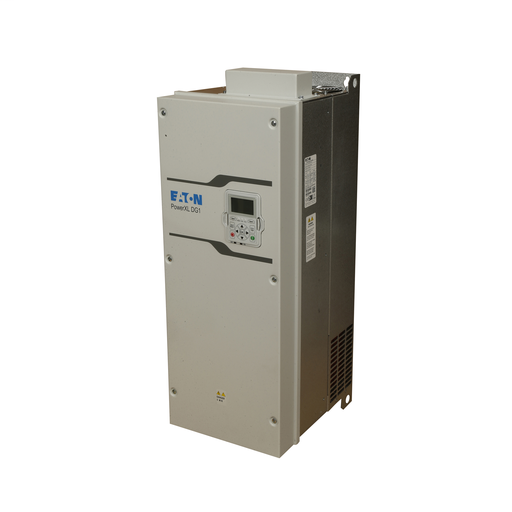

Eaton PowerXL DG1 variable frequency drive, 208-240V input 75 kW 100 Hp CT 3PH 50/60 Hz 140A output IP21/type 1 enclosure FR6 LCD Internal EMC filter and DC choke EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU ports 2 exp slots

Technical Information

Amperage
75 Amp
Display Type
LCD
Enclosure
IP21,Type 1,Type 1 Enclosure
Enclosure Rating
1, IP21
Enclosure Type
IP21, Type 1, Frame 6
Frame
6
Frequency
50-60 Hz
Horsepower
100 hp
Input Voltage
208 V
IP Rating
IP21
Material
Coated Board
NEMA Size
1
Number of Phases
3 Phase
Power Rating
75 kW
Standard
C-Tick Compliant,CE Marked,EN 61800-3,EN 61800-5,EN 61800-5-1,EN 61800-5-2,EN 62061,EN ISO 13849-1,IEC 61508,RoHS Compliant,UL 508C
Type
100 hp
Voltage
230 Volt
Wattage
75 kW

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786685878898
GTiN
00786685878898
Product UPC
78668587889
Weight
80 lb

Dimensions

Height
19-1/2 Inch
Length
43 Inch
Width
18 in
