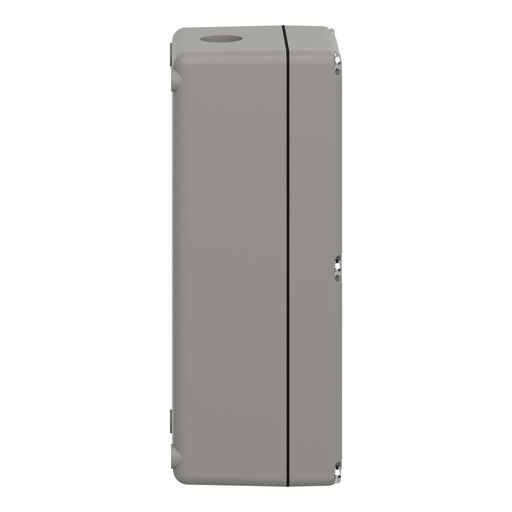

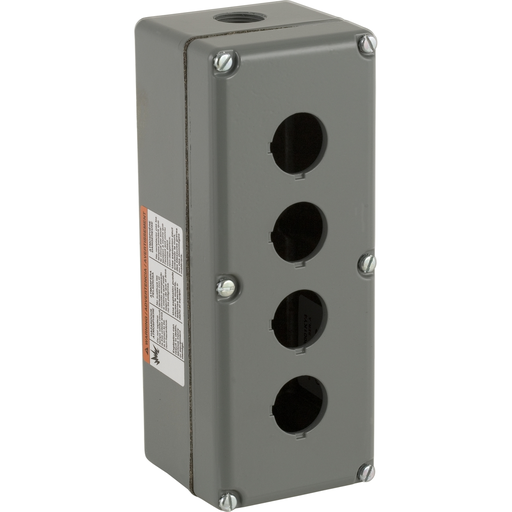

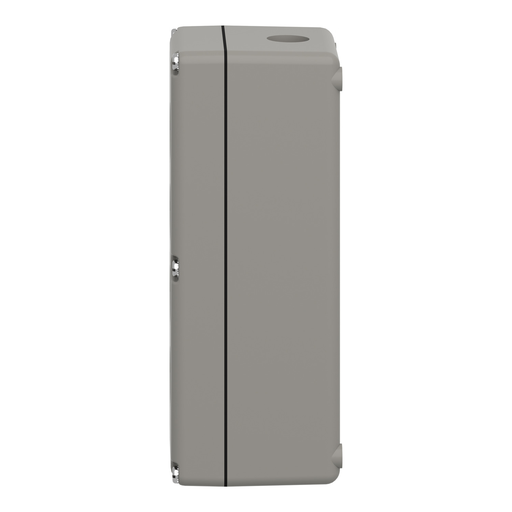

Product image for Square D 9001KY4 3.63 x 9.25 x 3.53 Inch NEMA 1/3/4/13 4-Hole Push Button Control Station Enclosure
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D 9001KY4 3.63 x 9.25 x 3.53 Inch NEMA 1/3/4/13 4-Hole Push Button Control Station Enclosure

Manufacturer: Square-D / Schneider | Catalog # 9001KY4 | Echo Electric Part # 181797
$314.12/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This empty enclosure is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It comprises an aluminium enclosure with 4 vertical opening diameter 30mm. It is supplied with 1 entry tapped for 3/4'' cable gland. It weighs 1.846kg. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Technical Information

Applications
FOR Ø 30 MM CONTROL AND SIGNALLING UNITS
Cable Entry
3/4 in
Enclosure
NEMA 3/4/13
Material
Aluminum
Net Weight
1.84 kg
Operating Temperature
-25 TO +70 DEGREES C
Size
30MM
Storage Temperature
-40-70 degrees C
Type
CONTROL STATION ENCLOSURE

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
785901874515
GTiN
00785901874515
Product UPC
78590187451
Weight
1.84 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
