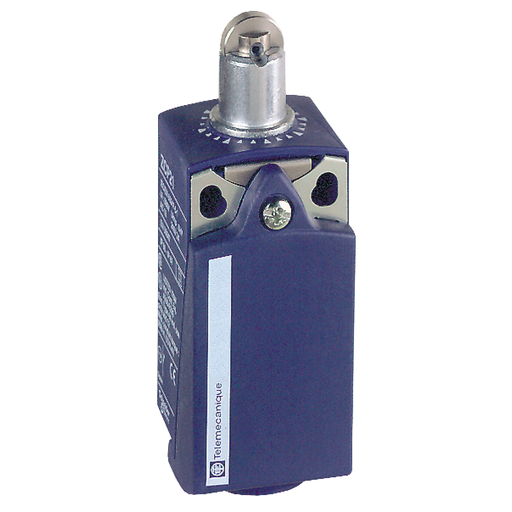

Product image for SQUARED XCKP2502G11 Limit switch, L
Email

SQUARED XCKP2502G11 Limit switch, L

Manufacturer: TES ELECTRIC | Catalog # XCKP2502G11 | Echo Electric Part # 188419
$124.21/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Limit switch, Limit switches XC Standard, XCKP, steel roller plunger, 1NC+1 NO, slow, Pg11

Technical Information

Action
Slow-break, break before make;By 30? cam
Actuator
SPRING RETURN ROLLER PLUNGER METAL
Amperage
10 Amp
Applications
COMPACT VARIABLE
Body Material
Plastic
Body Type
Fixed
Cable Entry
1 entry tapped for Pg 11 cable gland
Contact Configuration
1 NC + 1 NO
Enclosure
NEMA 1/2/4/6/12/13 IP66/67
Head Type
Plunger head
Material
Plastic
Net Weight
0.095 kg
Number of Poles
2 Pole
Operating Cycles
5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
1.18 in
Standard
CSA C22.2 No 14,EN 60204-1,EN 60947-5-1,IEC 60204-1,IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.5...2 X 2.5 MMA
Type
Limit switch
Voltage
240//250 VAC//VDC

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCKP

General Product Info

12-Digit UPC
785901589068
GTiN
03389110316810
Product UPC
78590158906

Dimensions

Depth
30 mm
Height
65-65 mm
Warranty Length
18 mth
Width
31 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,UL
