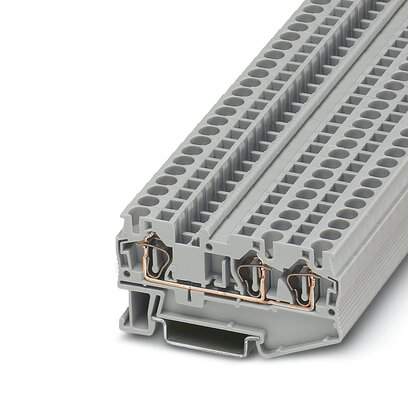

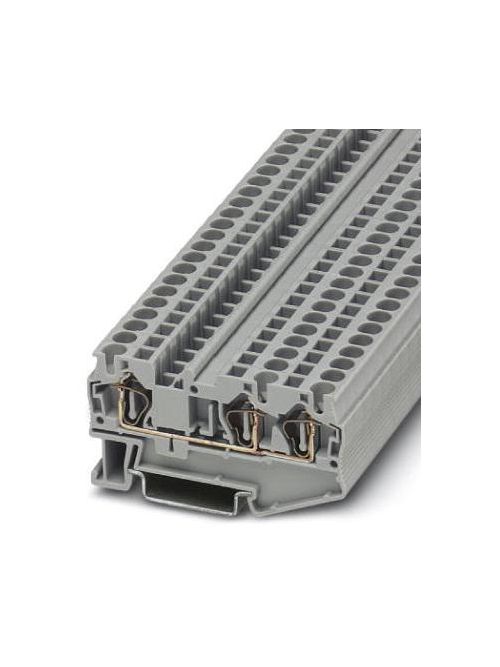

Product image for PHNX 3031393 ST-4 TWIN
Image thumbnail 0
Image thumbnail 1
Email

PHNX 3031393 ST-4 TWIN

Manufacturer: Phoenix Blocks | Catalog # 3031393 | Echo Electric Part # 190244
$3.11/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
215 available

For Delivery

Not in local stock *
Check another branch
Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Spring-cage connection, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

Technical Information

Amperage
32 Amp
Applications
Railway Industry, Machine Building, Plant Engineering, Process Industry Applications
Connection Type
Spring Cage
Material
Nylon, Polyamide
Number of Poles
3 Pole
Strip Length
10 mm
Temperature Rating
-60 to 110 degrees C
Type
Single-Level, 3-Position
Voltage
800 Volt Nominal, 8 kV Surge
Wire Size
28-10 AWG

Manufacturer Information

Brand
Phoenix

General Product Info

12-Digit UPC
179181868690
Color
Gray
Product UPC
17918186869

Dimensions

Length
71.5 mm
Width
6.2 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
  • User-friendly implementation of all potential branching tasks
  • Tested for railway applications
  • Space-saving and practical multi-conductor connection without additional bridges
Approvals
  • BV
  • VDE Zeichengenehmigung
  • cULus Recognized
  • EAC Ex
  • EAC
  • IECEx
  • LR
  • NK
  • IECEE CB Scheme
  • DNV GL
  • ATEX
  • RS
  • KR
  • CSA
  • UL Recognized
  • cUL Recognized
