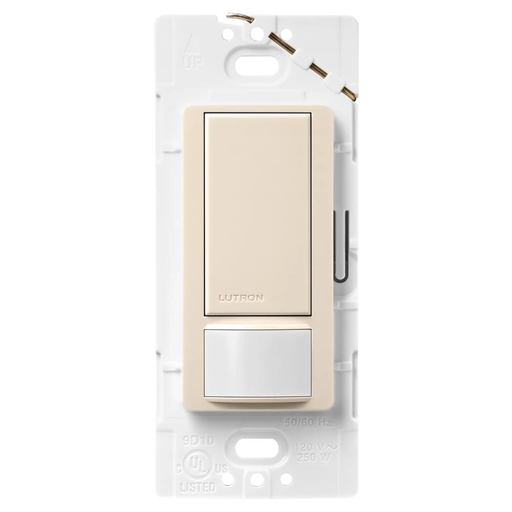

Lutron MS-OPS2-LA MAESTRO Occupancy/Vacancy Sensing Switch, Single-Pole, 120V - Light Almond

Manufacturer: Lutron | Catalog # MS-OPS2-LA | Echo Electric Part # 190879
$32.96/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Maestro Occupancy-Sensing Switch, Single-pole, 120V/2A in light almond

Technical Information

Amperage
2 Amp
Applications
Lighting Control
Body Material
Plastic
Enclosure
Plastic
Enclosure Material
Plastic
Mounting Type
Wallbox
Operating Temperature
0 to 40 degrees C
Power Supply
120 V
Sensing Range
900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Standard
CUL,NOM,UL
Type
Single Circuit
Voltage
120 Volt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Maestro

General Product Info

12-Digit UPC
027557982689
Color
Almond
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
Finish
Gloss
GTiN
00027557982689
Product UPC
02755798268

Certifications and Compliance

Country of Origin
China
Standards and Certifications
  • UL
  • CUL
  • NOM
  • cUL
Features
  • Includes (1) Lutron Maestro 2A Motion Sensor Switch; Gloss Finish
  • Rated to work with up to 2A lighting; 120V
  • Single Pole only
  • Wire-Lead installation; Ground or Neutral Required
  • Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
  • 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
  • Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough natural light is present in the room
  • Easy button programming to customize timeout, sensor mode, or sensitivity
  • Complies with Title 20/24 Section 110.9 for automatic shutoff
  • Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Combines a Maestro switch with a passive infrared occupancy sensor
  • Detects the heat from occupants moving within an area to determine whether the space is occupied
  • Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly
  • Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection
  • 180 degree sensor field-of-view
  • Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
  • Can be set to auto-on/auto-off or manual-on/auto-off
  • Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
  • Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan
  • Ground wire required.
