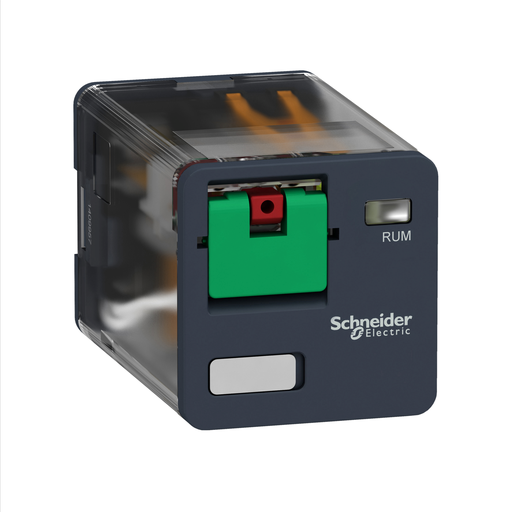

Product image for SQD RUMF31F7 Universal plug in rela
Image thumbnail 0
Image thumbnail 1
Email

SQD RUMF31F7 Universal plug in rela

Manufacturer: Square-D / Schneider | Catalog # RUMF31F7 | Echo Electric Part # 191341
$24.59/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
This Harmony RUM universal plug-in relay uses flat pins, has a control coil voltage of 120V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
10 Amp 250 V AC-10 Amp 28 V DC,10 Amp 277 V AC UL-10 Amp 30 V DC UL-10 Amp 277 V AC SAME POLARITY)CSA-10 Amp 30 V DC CSA-5 Amp 250 V AC NC)IEC-5 Amp 28 V DC NC)IEC-10 Amp 250 V AC NO)IEC-10 Amp 28 V DC NO)IEC
Contact Configuration
3 C/O
Contact Material
Silver Alloy
Line Rated Current
10 A
Net Weight
0.086 kg
Operating Cycles
<= 1200 Cycles/hour Under Load,<= 18000 Cycles/hour No-load
Operating Temperature
-40-55 degrees C
Standard
CSA C22.2 No 14,EN/IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
Type
Plug-in relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RUM

General Product Info

12-Digit UPC
606480627401
GTiN
03606480627408
Product UPC
78590195892
Weight
0.19 lb

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,EAC,UL
Country of Origin
China
