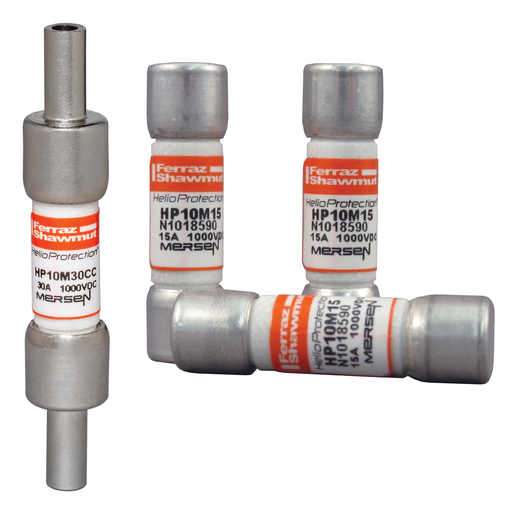

Product image for Mersen HP10M30 30amp 1000VDC Photovoltaic Fuse
Image thumbnail 0
Image thumbnail 1
Email

Mersen HP10M30 30amp 1000VDC Photovoltaic Fuse

Manufacturer: Ferraz Shawmut | Catalog # HP10M30 | Echo Electric Part # 196271
$40.15/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Engineered to protect photovoltaic applications Mersen's HP10M photovoltaic (PV) fuse series was engineered and designed specifically for the protection of photovoltaic systems. Its enhanced fuse construction makes it ideal for constant temperature and current cycling withstand adding to system longevity. The 1000VDC rated HP10M, designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, allows for safe circuit interruption under typical low fault current conditions produced by PV arrays. Protect your off-grid or grid tied PV system from unexpected ground faults and line faults using Mersen's HelioProtection fuse line.

Technical Information

Amperage
30 Amp
Applications
All photovoltaic applications PV string/array level protection Combiner box applications In-line PV module protection Inverters Battery charge controllers
Fuse Class
Photovoltaic
Insulation Material
GMG
Interrupt Rating
10 kAIC
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage DC
1000 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Photovoltaic Fuses
Voltage
1,000 VDC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.
Sub Brand
Helio Protection

General Product Info

12-Digit UPC
782001436872
GTiN
30782001436873
Product UPC
78200143687
Weight
0.02 lb

Dimensions

Diameter
1-1/2 Inch
Length
0.41 Inch

Certifications and Compliance

Country of Origin
Mexico
Features
  • Low fault current interrupting capability
  • Durable construction for enhanced system longevity
  • Temperature cycle withstand capability
  • Guaranteed operation at temperature extremes
  • Industrys first UL Listed Solution
  • Globally accepted
Certifications
  • UL Listed to Standard UL2579 File E333668
  • CSA Component Certified C22.2
  • IEC 60269-6 Approved
