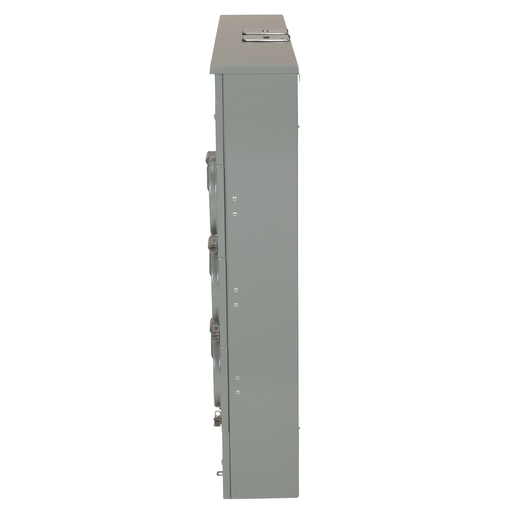

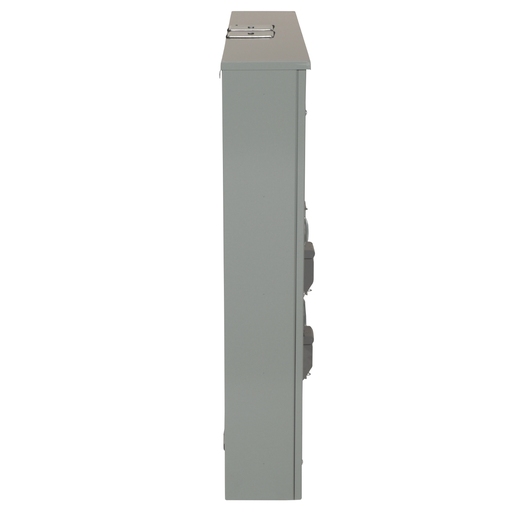

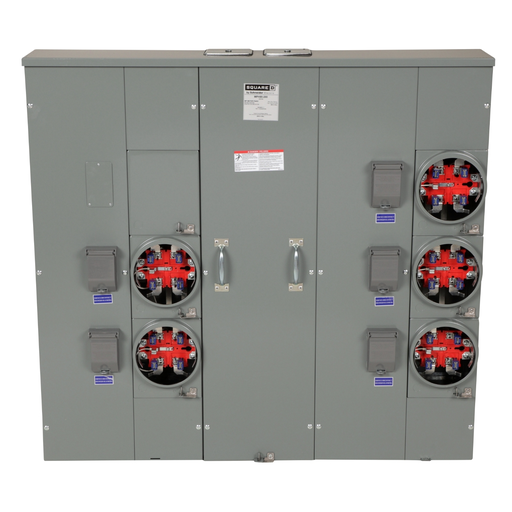

Square D MPH85200 800A Bus, 200A Max Breaker, 120/240VAC, 1P3W, 5-Socket, Horn Bypass, 5 Jaws, NEMA 3R Ringless Meter Center
Note: Installers Responsibility to Confirm Approved by Local Inspector

Manufacturer: Square-D / Schneider | Catalog # MPH85200 | Echo Electric Part # 198795
$2,542.00/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
MPH Meter Pak meter centers offer a wide range of multimetering applications. MPH meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPH meter center has a ringless socket with a horn bypass and a 5th jaw. The aluminum main bus ampacity is 800 A. This MPH meter pak meter center has 5 meter sockets. The maximum tenant main lugs amperage is 200 A with a 240 VAC single phase maximum. This MPH meter center with accept 3/0 AWG to two 500 kcmil copper or aluminum wire. Meter center is UL listed.

Technical Information

Amperage
200 Amp
Bus Rating
800 A
Cable Entry
OH/UG
Conductor Size
3/0 AWG-500 kcmil
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Material
Aluminium: Busbar
NEMA Size
3R
Number of Jaws
5
Number of Phases
1 Phase
Type
Ringless;Meter Center
Voltage
240 Volt
Wire Size
AWG 3/0...500 kcmil 2 aluminium;AWG 3/0...500 kcmil 2 copper

Manufacturer Information

Brand
Square D
Sub Brand
METER-PAK

General Product Info

12-Digit UPC
785901410539
GTiN
00785901410539
Product UPC
78590141053

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
