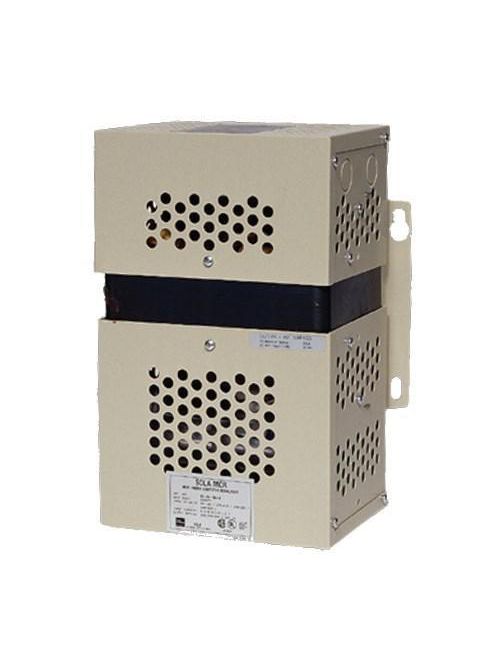

Product image for SolaHD 23-23-210-8 1000 VA 480 Volt Input 120/240 Volt Output 1-Phase Constant Voltage Transformer
Image thumbnail 0
Image thumbnail 1
Email

SolaHD 23-23-210-8 1000 VA 480 Volt Input 120/240 Volt Output 1-Phase Constant Voltage Transformer

Manufacturer: Appleton Electric | Catalog # 23-23-210-8 | Echo Electric Part # 199080
$4,530.07/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Safety Data Sheet Product Catalog Page
Superior voltage regulation of ±1 percent sets the CVS Hardwired Constant Voltage Transformers apart from other power conditioning technologies on the market. No other power conditioning technology is as effective against power quality disturbances including impulses, swells, sags, brownouts and waveform distortion. The CVS is ideal for applications where even a small change in voltage levels can lead to unscheduled downtime, equipment malfunction, incorrect data or scrapped production.

Technical Information

Amperage
500 VA
Applications
Industrial Automation and Control Equipment Power PLCs, Broadcast Equipment, Photo Processing Equipment
Efficiency
Up to 92% at Full Load PCT
Mounting Type
Bracket
Number of Phases
1 Phase
Operating Temperature
-20 to 50 degrees C
Primary Voltage
120/208/240/480 VAC
Secondary Voltage
120/240 VAC
Size
13 High x 9 Wide x 7 Deep IN
Temperature Rating
-20 to 50 degrees C
Type
CVS Hardwired Series - Constant Voltage Transformers

Manufacturer Information

Brand
Emerson Electric Co.
Sub Brand
SolaHD™

General Product Info

12-Digit UPC
783472220557
GTiN
00783472220557
Product UPC
78347222055

Certifications and Compliance

Buy American Compliant
Y
Features
  • cULus, RoHS
  • Superior voltage regulation of 1%
  • Surge protection tested to ANSI/IEEE C62.41, Class A & B waveform
  • Harmonic filtering
  • Hardwired
  • Acts as a step-up/step-down transformer
  • Galvanic isolation provides exceptional circuit protection
  • 25 year typical mean time between failure
  • No maintenance required
