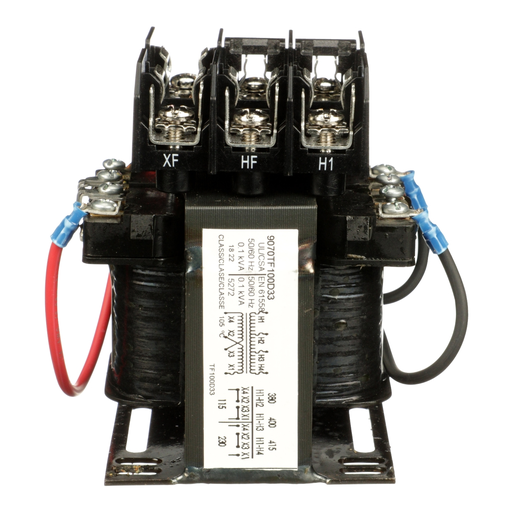

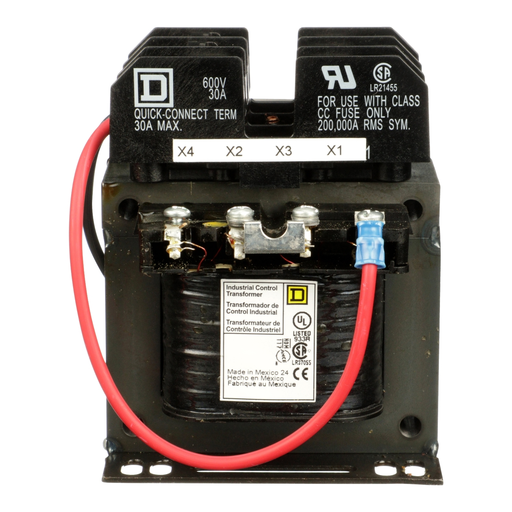

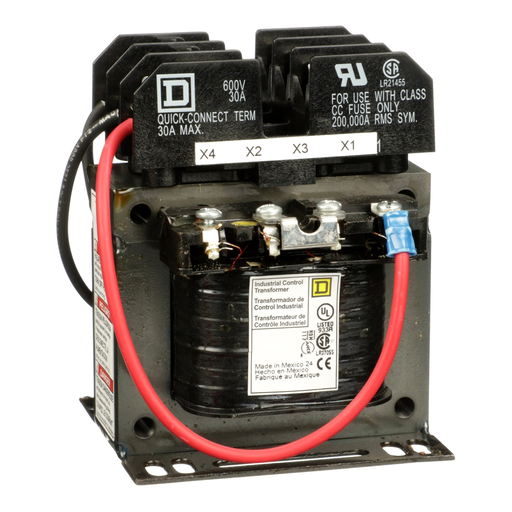

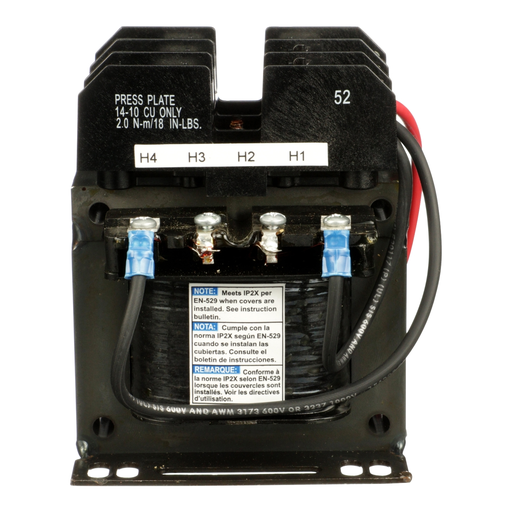

Product image for Square D 9070TF100D33 100 VA 380/400/415 VAC Primary 115/230 VAC Secondary 1-Phase Control Transformer
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D 9070TF100D33 100 VA 380/400/415 VAC Primary 115/230 VAC Secondary 1-Phase Control Transformer

Manufacturer: Square-D / Schneider | Catalog # 9070TF100D33 | Echo Electric Part # 199283
$592.28/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Industrial control transformer, Type TF, 1 phase, 100VA, 380/400/415V primary, 115/230V secondary, 50/60Hz

Technical Information

Applications
DEVELOP TO HELP CUSTOMERS COMPLY WITH UL STANDARD 508 AND NEC 450
Enclosure
OPEN BOX
Fuse Type
1.50 in
Material
Copper: Winding
Number of Phases
1 Phase
Power Rating
100 VA
Primary Voltage
115/230 V
Secondary Voltage
115/230 V
TC Connection
SCREW CLAMP
Temperature Rating
55 DEGREES C
Temperature Rise
55 degrees C
Type
0.41 X 1.50 IN CC FUSE MOUNTING ON TOP,OPEN BOX
Voltage
115/230 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901314158
GTiN
00785901314158
Product UPC
78590131415

Dimensions

Depth
3.34 Inch
Height
4-1/4 Inch
Warranty Length
18 mth
Width
3.38 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA File LR37055 Guide 184-N-90,UL Listed File E61239
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9070FP1
  • 9070FSC1
  • 9070FB3A
  • 9070FB2A
  • 9070SF25A
  • 9070SF41A
  • 9070FB1A
