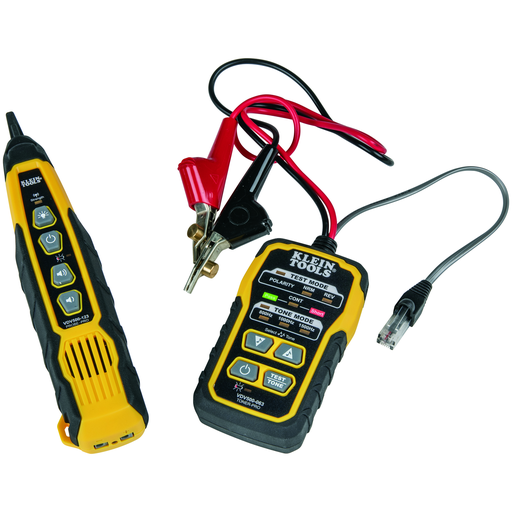

Klein VDV500-820 Tone & Probe PRO Wire Tracing Kit

Manufacturer: Klein Tool | Catalog # VDV500-820 | Echo Electric Part # 211469
$99.98/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 13 to 21 days
Product Spec Sheet Safety Data Sheet
This kit includes the tools necessary to tone and trace wires in common wiring systems. This premium tone generator has Angled Bed of Nails (ABN) clips that securely grip the cable. Tone Generator emits five distinct tones. An RJ11 plug easily connects to telephone or RJ45 data jacks for toning. The toner, also checks continuity and polarity that are indicated by clearly labeled LEDs. The probe traces with the tones signal. The adjustable-volume speaker amplifies the tone. The 3.5 mm jack allows for headphones (sold separately) to be attached in noisy environments. The probe has a tool-less non-metallic durable replaceable tip. The probe enables testing in distribution blocks without disturbing other services.

Technical Information

Applications
Wire Toning and Tracing
Battery Type
8 X AAA
Material
Metal
Number of Rows
3
Type
Tone Generator Tracing Probe

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644692192
GTiN
00092644692192
Product UPC
09264469219
Weight
1.250 lb

Dimensions

Depth
3 Inch
Height
12 Inch
Length
7 Inch
Overall Length
7 in
Width
3 in

Certifications and Compliance

Country of Origin
China
Features
  • Includes a professional grade tone generator and tracing probe for non-energized wiring

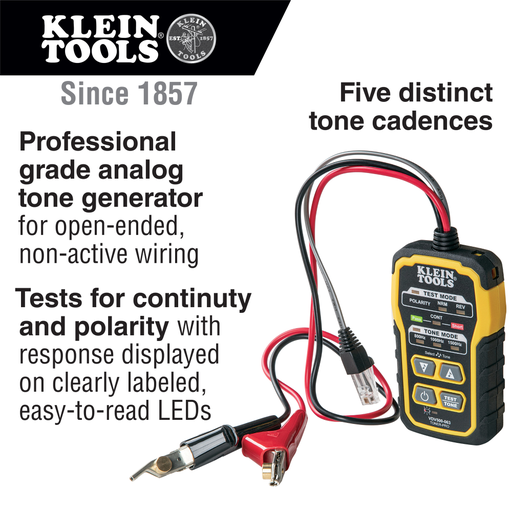

  • Toner-Pro features 5 distinct tone cadences, transmits 1,000+ feet
  • Rugged Angled Bed of Nails (ABN) clips securely attach to wires
  • RJ11 plug easily connects to telephone and RJ45 data jacks to tone wire pair

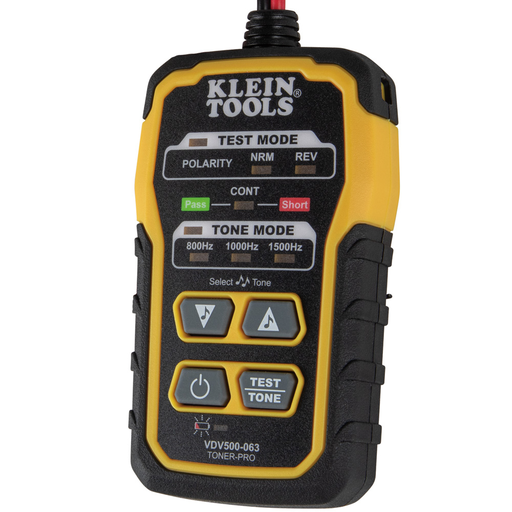

  • Toner-Pro tests for continuity and polarity with results indicated by clearly labeled LEDs

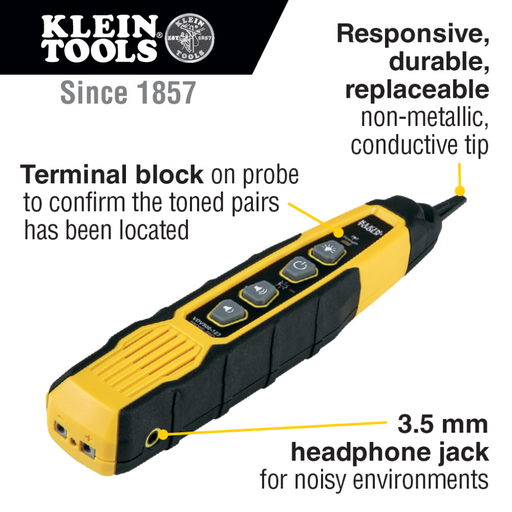

  • Probe-Pro features 3.5 mm headphone jack for noisy environments (headphones not included)
  • Responsive probe with durable non-metallic, replaceable conductive tip (VDV999-068) - sold separately

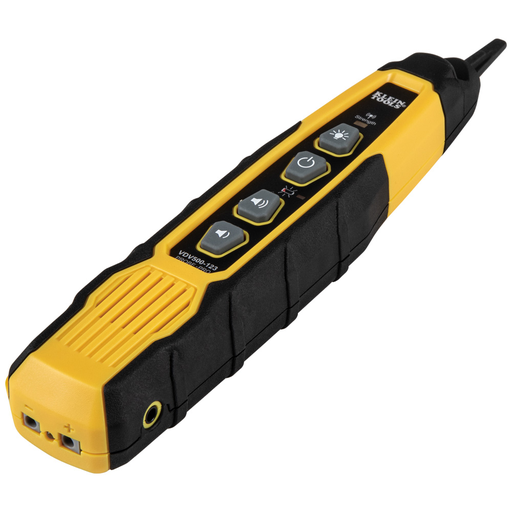

  • Work light on probe tip for use in dark spaces
  • Terminal block on probe to confirm the toned pair
  • Each tool includes 4X AAA batteries
  • Custom, padded, divided, zipper pouch for convenient storage (VDV770-500) included with kit
  • Angled Bed of Nails with (ABN) Clips, 5 Distinct Cadences, Worklight
  • Includes a professional grade tone generator and tracing probe for non-active wiring
  • Includes a professional grade analog tone generator and tracing probe for open-ended, non-energized wiring
Warnings
  • Carefully read all instructions.
  • Read all safety information before using the products.
  • Do NOT use on energized circuits.
  • Do not use instruments if they are wet, as it could pose a shock hazard.
  • Do not use instruments if they are damaged in any way.
  • Turn off instruments and disconnect all test leads before attempting to replace batteries.
  • Do not open the case, other than the battery compartment.
  • The battery door must be in place and secure before you operate.
Replaced By Products
  • VDV500123
  • VDV500063
  • VDV999068
  • VDV770500
