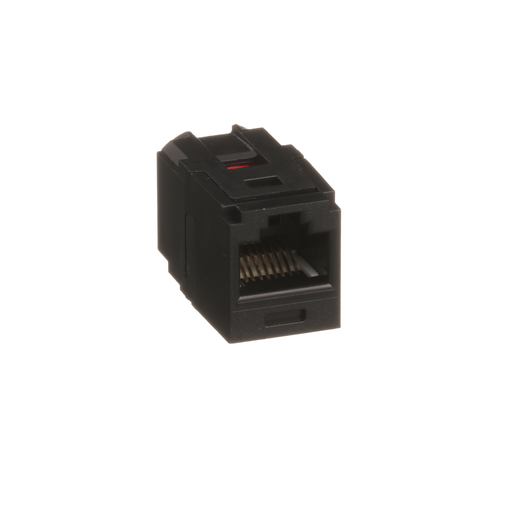

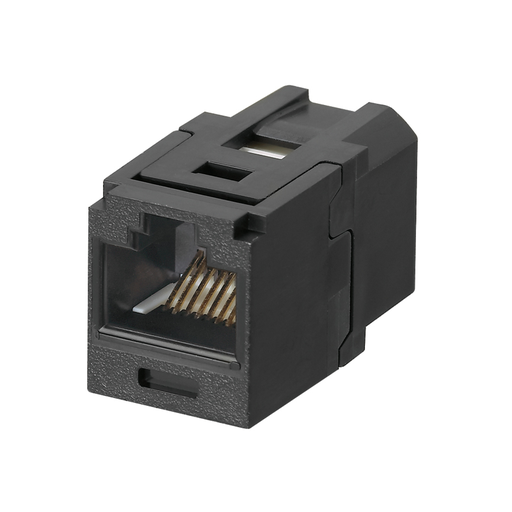

Panduit CC688BL Mini-Com® Cat 6 UTP RJ4

Manufacturer: Panduit Corp | Catalog # CC688BL | Echo Electric Part # 212682
$59.06/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual
The Mini-Com® Cat 6 UTP RJ45 Coupler Module is designed and 100% factory tested to allow for up to two couplers to be used and meet channel performance requirements. Contacts are plated with 50 microinches of gold for superior performance. The coupler module is compatible with Mini-Com Modular Patch Panels and Faceplates. The coupler is black.

Technical Information

Applications
For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet) and 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Voice Over Internet Protocol (VoIP)
Cable Entry
T568A/T568B
Cable Type
Category 6
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Mounting Type
Patch Panel
Number of Positions
8
Performance Level
Category 6
Temperature Rating
-10 to 65 degrees C
Type
Unshielded, Universal, 8-Wire, RJ45

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com, TX6™ Plus

General Product Info

12-Digit UPC
074983017812
Color
Black
Environmental Conditions
< 40 m? Humidity, < 40 m? Thermal Shock
GTiN
00074983017812
Product UPC
07498301781
Used With
T568A/T568B Cable

Dimensions

Depth
1.09 Inch
Height
0.71 Inch
Overall Length
1.09 in
Width
0.62 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China
Standards and Certifications
  • Standards Met: Exceeds Channel Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category with up to 2 couplers per channel, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
