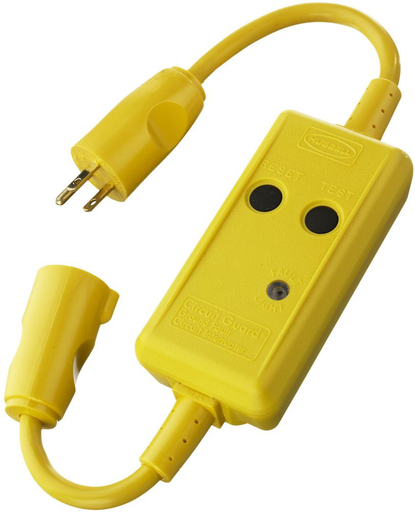

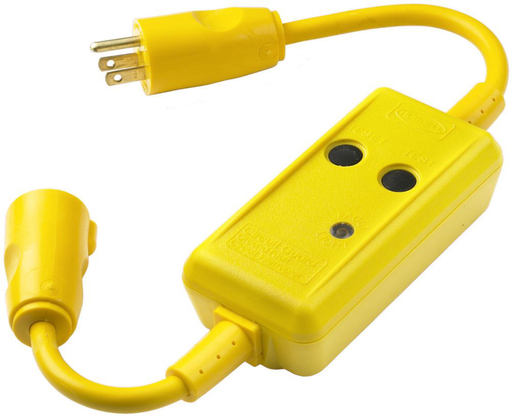

Hubbell GFP4C15A 15 Amp 120 VAC 18 Inch Automatic Set Portable GFCI Line Cord

Manufacturer: Hubbell Wiring Device | Catalog # GFP4C15A | Echo Electric Part # 213501
$163.89/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Power Protection Products, GFCI Linecords, Commercial, Auto Set, 15A 120V AC, 5-15R, 18" Cord Length, 4- 6 mA Trip Level, Yellow.

Technical Information

Amperage
15 Amp
Applications
Line Cord with Male/Female Ends
Conductor Material
Copper
Conductor Size
14 AWG
Conductor Type
Copper
Cord Length
18 in
Current
15 Amp
Frequency
60 Hz
Insulation Material
Elastomer
Number of Conductors
3
Operating Temperature
-30 To 150 degrees F
Standard
UL
Style
Automatic Set
Temperature Rating
-35 degrees C to 66 degrees C
Type
Straight Blade, Auto
Voltage
120 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
GFCI Portable Cordsets

General Product Info

12-Digit UPC
783585829531
Color
Yellow
Construction
Fabricated
GTiN
00783585829531
Jacket Material
PVC
Product Series
Extra Heavy Duty
Product UPC
78358582953
Weight
0.95 lb

Dimensions

Height
1.9 Inch
Length
18 Inch
Outside Diameter
0.245 in
Width
4.100 in

Certifications and Compliance

Country of Origin
China
Features
  • High Impact UV Stabilized Housing Resists Dust, Sunlight and Chemicals for Long Life
  • Heavy Duty Molded Plug and Connector for Reliable Connection
  • Solid (Not Formed) Plug Blades are Crimped and Soldered for a Better Connection and Longer Life
  • Heavy Duty Molded Strain Relief Prevents Conductor Strain and Resulting Failure
  • Watertight GFCI Housing For Use in Harsh Environments
  • Bright Fault Indicator Light Provides Fault Confirmation from a Distance
  • 1-Piece Flush Sealed Keypads for Greater Reliability and Resistance to Damage Due to Impact
  • Automatically Sets the GFCI for Use Upon Plug in and after the Loss of Primary Power
  • After a Ground Fault Condition, Unit Must be Reset by Pushing the Reset Button
Additional Information
  • Trip Level 4 to 6 Milliamp
  • Housing Material High Impact UV Stabilized PVC
  • Temperature Rating -30 to 66 Deg C
  • Applicable Standard NEC, CEC
