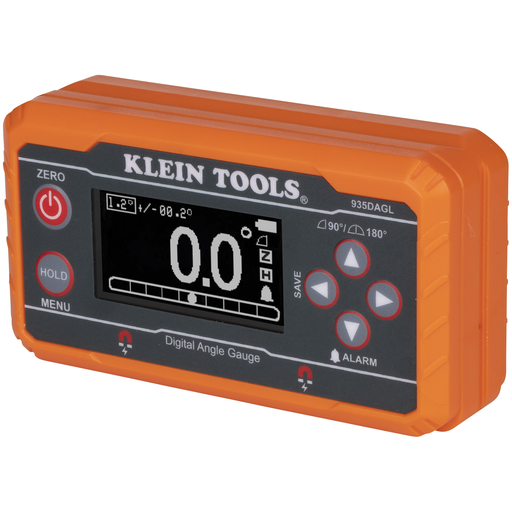

Klein 935DAGL Digital Level w/ Programmable Angles

Manufacturer: Klein Tool | Catalog # 935DAGL | Echo Electric Part # 214895
$64.99/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 13 to 21 days
Product Spec Sheet Safety Data Sheet

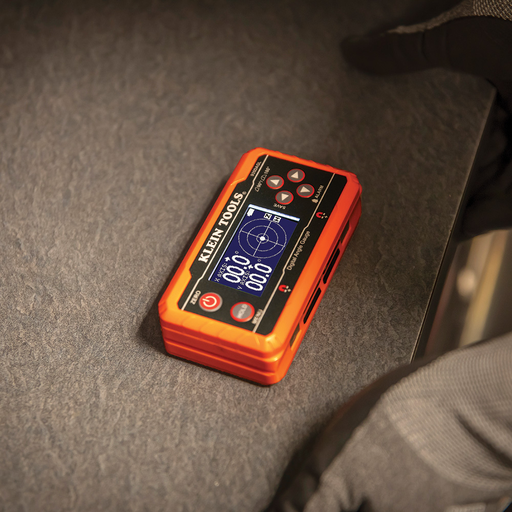

The Klein Tools 935DAGL is a digital level that detects and measures angles. It can measure ranges from 0 to 90-Degree or 0 to 180-Degree with a display that rotates when used in vertical or horizontal orientations. A target angle with audible alarm can be set, allowing the user even greater efficiency. When laid flat, it will function as a bullseye level. Set zero reference at any angle. LCD menu screen displays in English, Spanish, or French.

Technical Information

Accuracy
Vertical and Horizontal Orientation: +/-0.2, Bullseye Orientation: +/-0.5
Applications
For Measuring Angles, use as a Digital Level
Material
ABS Plastic
Power Source
(2) AA Batteries
Type
Digital Level

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644692383
GTiN
00092644692383
Product UPC
09264469238
Weight
0.370 lb

Dimensions

Depth
4.55 Inch
Height
2.48 Inch
Length
4.57 Inch
Overall Length
4.57 in
Width
1.36 in

Certifications and Compliance

Country of Origin
China
Warnings
  • Read, understand, and follow instructions to ensure safe operation
  • Always wear approved eye protection
  • See instruction manual for additional warnings
Features
  • Digital level measures 0 to 90-Degree, 0 to 180-Degree, or dual axis bullseye ranges
  • Pre-programmed commonly used target pitches for efficiency and ease-of use: 1/8-Inch, 1/4-Inch, 3/8-Inch and 1/2-Inch per foot
  • Easily achieve target angle by setting an audible alarm; LCD will change color as a visual indicator of reaching the set target angle

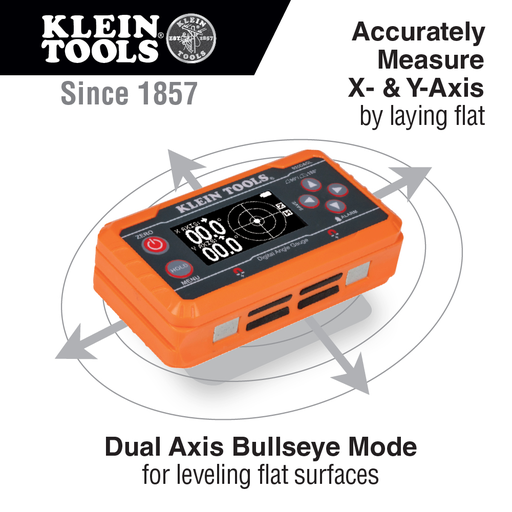

  • Use in bullseye orientation to accurately determine X- and Y-axis
  • Display auto-rotates when used in horizontal or vertical orientation
  • High visibility reverse contrast display improves visibility in dimly lit work environments
  • Strong magnetic base attaches to ferromagnetic surfaces

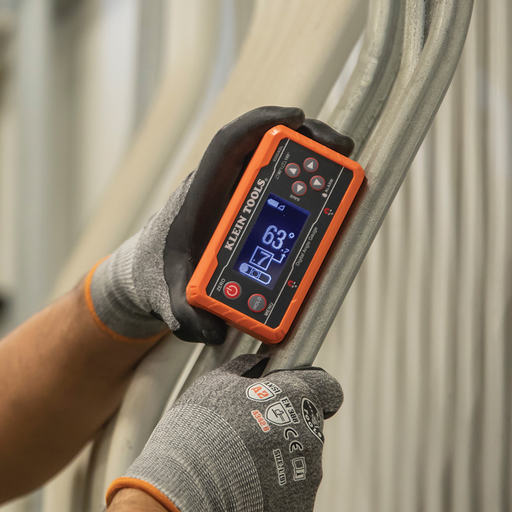

  • V-Groove edges enable optimal alignment on conduit and pipes for bending and alignment
  • Language selectable menu for English, Spanish, and French
  • Soft carrying case and 2 x AA batteries included
  • Optional Plumber's Kit (Cat. No. 69346) allows the level to be used with PVC and other non-magnetic pipes and Conduit, up to 6 inches of outer diameter
  • Audible Alarm, Magnetic Base, V-Grooves on Top and Bottom
