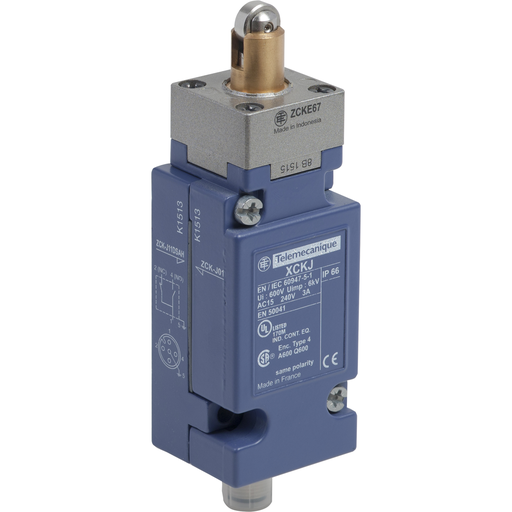

Product image for SQUARED XCKJ1167DSA8 Limit switch,
Email

SQUARED XCKJ1167DSA8 Limit switch,

Manufacturer: TESENSOR | Catalog # XCKJ1167DSA8 | Echo Electric Part # 215341
$359.30/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Limit switch, XC Standard, XCKJ, steel roller plunger reinforced, 1C/O, snap, Pg13

Technical Information

Action
Snap action;By 30? cam
Actuator
SPRING RETURN ROLLER PLUNGER METAL REINFORCED
Amperage
10 Amp
Applications
INDUSTRIAL
Body Material
Zamak
Body Type
Plug-in body
Cable Entry
1 entry tapped for Pg 13.5 cable gland 0.350.47 in (912 mm)
Contact Configuration
1 C/O
Head Type
Plunger head
Material
Metal
Net Weight
0.455 kg
Number of Poles
1 Pole
Number of Steps
1
Operating Cycles
5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
1.42 in
Standard
CENELEC EN 50041,CSA C22.2 No 14,EN 60204-1,EN 60947-5-1,IEC 60204-1,IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.75...2 X 1.5 MMA
Type
Limit switch
Voltage
3 A 240 Volt, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCKJ

General Product Info

12-Digit UPC
389119056024
GTiN
03389119056021
Product UPC
78590195292

Dimensions

Depth
36 mm
Height
84-84 mm
Warranty Length
18 mth
Width
43 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,UL
