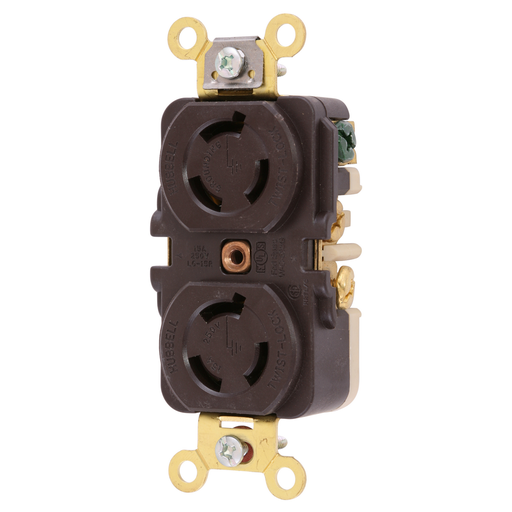

Hubbell HBL4550 15A 250V Twist-Lock Brown Duplex Receptacle

Manufacturer: Hubbell Wiring Device | Catalog # HBL4550 | Echo Electric Part # 217462
$84.53/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Duplex Flush Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15R, Screw Terminal, Brown.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Base Material
RTP
Conductor Size
14-12 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
RTP
Grade
Industrial
Horsepower
1.5 hp
Material
Thermoplastic
Mounting Type
Screw

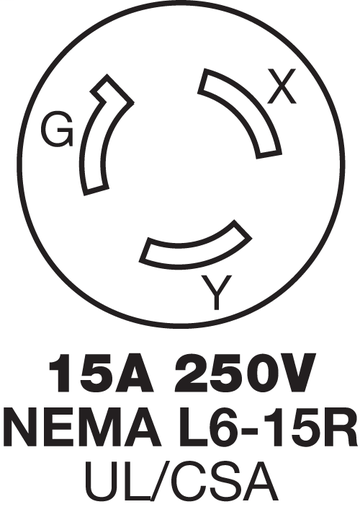

NEMA
L6-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed. Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Heavy Duty
Voltage
250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585002378
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585002378
Product UPC
78358500237
Weight
0.30 lb

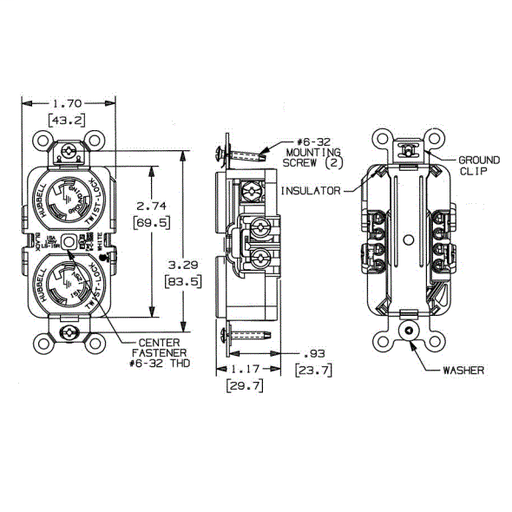

Dimensions

Height
1.17 Inch
Length
3.29 Inch
Width
1.70 in

Certifications and Compliance

Country of Origin
USA
Features
  • Reinforced thermoplastic construction
  • Single piece, all brass contacts
  • Single point break-off tabs
  • Mounting strap tabs lock the body and base together
  • Standard
