Hubbell HBL4720-CA 15A 125V Twist-Lock INSULGRIP Black Nylon Plug, 8-Position Angle

Manufacturer: Hubbell Wiring Device | Catalog # HBL4720CA | Echo Electric Part # 217582
$30.68/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual

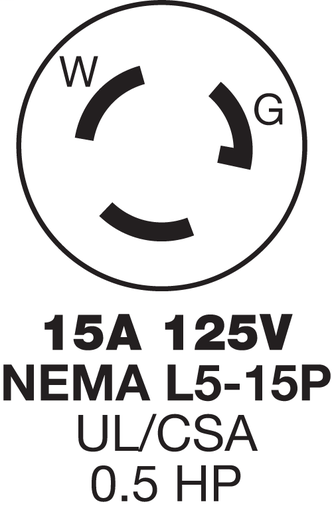

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15P, Screw Terminal, Black and White Nylon, 8 position angle.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
16-8 AWG
Cord Size
0.325 - 0.655 in
Cord Type
Portable
Current
15 Amp
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Cord
NEMA
L5-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
2.08 in x 1.52 in x 1.21 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard Sized
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585171203
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585171203
Product UPC
78358517120
Weight
0.15 lb

Dimensions

Height
1.21 Inch
Length
2.08 Inch
Width
1.52 in

Certifications and Compliance

Country of Origin
USA
Features
  • Individually molded face for each blade configuration
  • Roomy wiring chamber provides ample space for wiring
  • Ribbed nylon housing provides a secure grip thats impact and chemical resistant
  • Angled
