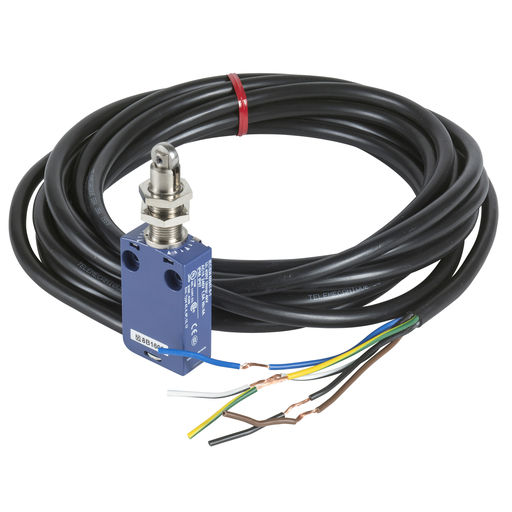

Product image for TES XCMD21F2L1 Limit switch, Limit switches XC Standard, XCMD, M12 steel roller plunger, 1NC+1 NO, snap, 1 m
Email

TES XCMD21F2L1 Limit switch, Limit switches XC Standard, XCMD, M12 steel roller plunger, 1NC+1 NO, snap, 1 m

Manufacturer: TESENSOR | Catalog # XCMD21F2L1 | Echo Electric Part # 218259
$129.37/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This XCMD miniature format limit switch has a steel roller plunger and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and is pre-cabled with 1m cable. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.

Technical Information

Action
BY 30A CAM,LATERAL APPROACH, 2 DIRECTIONS,SNAP ACTION
Actuator
SPRING RETURN ROLLER PLUNGER METAL
Amperage
6 Amp
Applications
MINIATURE VARIABLE
Body Material
Zamak
Body Type
Fixed
Contact Configuration
1 NC + 1 NO
Enclosure
NEMA 1/2/4X/6/6P/12/13 IP66/67/68
Head Type
M12 plunger head
Material
Metal
Net Weight
0.205 kg
Number of Poles
2 Pole
Operating Cycles
5000000 CYCLES, DC-13, 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
16 MM,30 MM,50-50 MM
Standard
CSA C22.2 No 14,EN/IEC 60204-1,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
REMOVABLE CABLE CONNECTOR
Type
M12 PLUNGER HEAD,LIMIT SWITCH
Voltage
240//250 VAC//VDC

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCMD

General Product Info

12-Digit UPC
785901682639
GTiN
03389110220032
Product UPC
78590168263
Weight
0.45 lb

Dimensions

Cable Length
1 m
Depth
16 mm
Height
50-50 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,UL
Country of Origin
Indonesia
