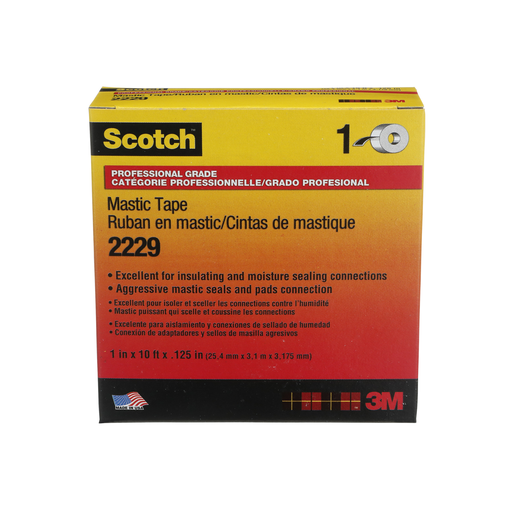

3M 2229-1X10 12/Case 1x10Foot Mastic Compound

Manufacturer: 3M | Catalog # 7000006032 | Echo Electric Part # 218369
$2,836.07/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page

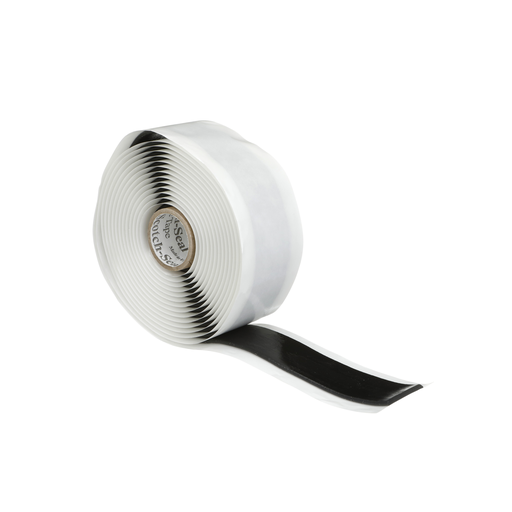

The 3M™ Scotch-Seal™ Mastic Tape 2229 is a 125 mil (3.18 mm) thick, highly conformable, tacky mastic tape on an easy release liner that's suitable for insulating, padding, and sealing of objects that need to be protected from adverse environmental conditions. It withstands temperatures up to 194°F (90°C).

Technical Information

Adhesive Type
Rubber
Applications
For Insulating, Padding and Sealing of High-Voltage Cables and Accessories
Backing Material
Rubber
Dielectric Strength
379 V/mil
Material
Mastic
Max Operating Temperature
100.0 degrees F
Temperature Rating
194 degrees F
Type
Unprinted
Voltage
1000 Volt

Packaging

Standard Packaging Qty
12/Case

Manufacturer Information

Brand
Scotch-Seal
Sub Brand
Scotch-Seal

General Product Info

12-Digit UPC
054007503354
Color
Black
GTiN
00054007503354
Product Form
Tape
Product Type
Mastic Tape
Product UPC
05400750335

Dimensions

Length
10 Foot
Overall Length
10.0 ft
Thickness
125.0 mil
Width
1.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • Conformable for easy adhesion and sealing over metals, rubbers, cable insulation, and irregular shapes
  • Insulates electrical connections rated up to 1000 volts if vinyl or rubber electrical tape is over wrapped

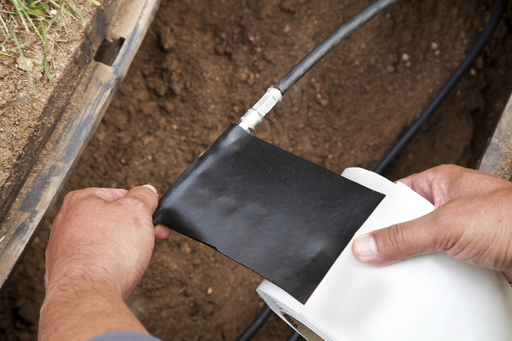

  • Used for sealing high-voltage cable splice, ducts, cable end seals, and protects from dust, soil, and water
  • Tape has self-healing characteristics after being punctured or cut and has chemical resistance
  • Use over a temperature range of 32F to 100F (0C to 38C) without loss of physical properties
  • Available in multiple roll, strip and pre-cut pad sizes and RoHS 2011/65/EU Compliant
