OnQ DW311I 0-10V DUAL TECH WALL BOX

Manufacturer: Wattstopper / Legrand | Catalog # DW311I | Echo Electric Part # 218489
$236.59/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

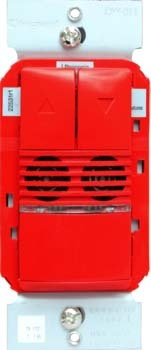

The DW-311 dual technology dimming wall switch sensor can turn lights OFF and ON based on occupancy and allow the user to increase or decrease the lighting level. It combines the benefits of passive infrared (PIR) and ultrasonic occupancy detection technologies and works with 0-10 VDC dimming drivers and ballasts to control lighting loads including LEDs.

Technical Information

Amperage
8.3 Amp
Applications
Offices, Conference Rooms, Lunch/Break Rooms
Connection Type
Wired
Enclosure
Plastic Housing
Indicator
True
Mounting Type
In-Wall
Sensing Range
Major motion, PIR 35 x 30, Ultrasonic 20 x 20 Minor motion, PIR 20 x 15, Ultrasonic 15 x 15
Sensor Type
Occupancy
Switch Type
Motion Sensor, Push
Type
Switch, Sensor
Wattage
1200 Watt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182939398
Color
Ivory
Finish
Matte
GTiN
00754182939398
Product UPC
75418293939

Dimensions

Depth
1.81 Inch
Height
2.73 Inch
Length
2.73 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Color-matched lens and low profile for appealing design
  • Supports Partial-ON operation for energy code compliance or incentives
  • 120/277VAC and 347VAC models
  • Allows fully functional multi-way control from up to four switch locations
  • Defaults to Manual-ON operation for maximum energy savings
  • High sensitivity and dense coverage for exceptional performance
