Hubbell HBL7485 15A 125/250V Midget Twist-Lock Black Nylon Plug, Straight

Manufacturer: Hubbell Wiring Device | Catalog # HBL7485 | Echo Electric Part # 218692
$40.71/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
5 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Midget Twist-Lock®, Industrial, Male Plug, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3P, Screw Terminal, Black.

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Conductor Size
14-12 AWG
Cord Type
All Listed Portables
Current
15 Amp
Grounding
Non-Grounding
Material
Composite
Mounting Type
Cord

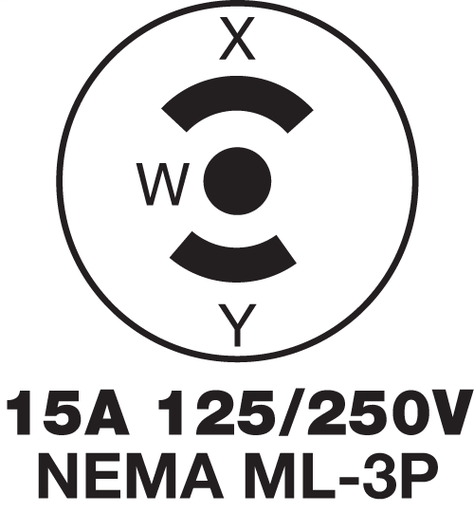

NEMA
ML-3P
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Midget Locking
Standard
CSA C22.2 No.42,UL 498
TC Connection
Pressure Screw Terminal
Type
Insulgrip, Midget
Voltage
125/250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
18-14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585237411
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585237411
Product UPC
78358523741
Weight
0.05 lb

Dimensions

Height
2.45 Inch
Length
1.17 Inch
Width
1.17 in

Certifications and Compliance

Country of Origin
USA
Features
  • Abuse resistant nylon housing
  • Phenolic body for high heat resistance
  • Angled body design for low profile in tight spaces
  • Totally insulated body adds extra measure of safety
  • Standard Product
