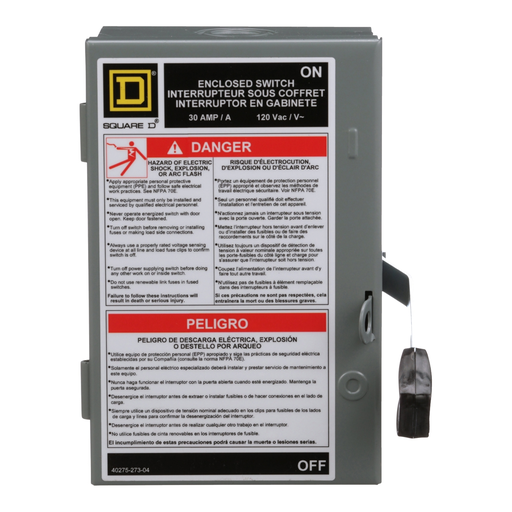

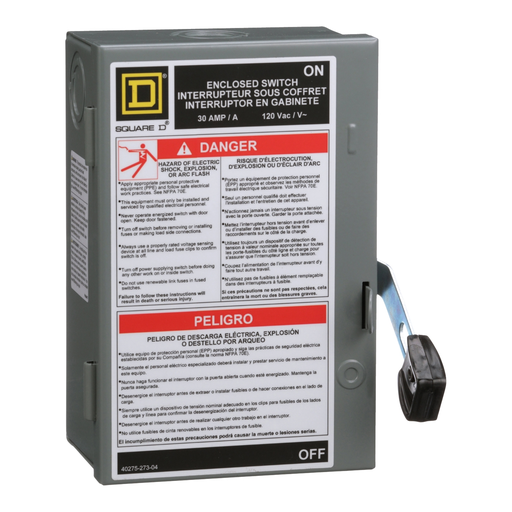

Product image for Square D L111N 120 Volt 30 Amp 1-Pole 2-Wire NEMA 1 Light Duty Safety Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D L111N 120 Volt 30 Amp 1-Pole 2-Wire NEMA 1 Light Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # L111N | Echo Electric Part # 218706
$76.56/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Light duty safety switches are ideal for home applications when disconnecting power to workshops, hobby rooms, furnaces and garages. The light duty safety switch has visible blades and a grounding kit as standard features. This light duty single throw safety switch is a single pole, 30A, fusible disconnect with a 120VAC voltage rating. This switch has a factory installed neutral and is a NEMA 1 enclosure and is surface mounted. This safety switch accepts plug fuses only. This switch comes with lugs suitable for aluminum or copper conductors. These light duty switches are UL listed.

Technical Information

Action
SINGLE THROW
Amperage
30 Amp
Applications
LIGHT DUTY
Conductor Size
12-8 AWG (AL)/14-8 AWG (CU)
Current
30 Amp
Enclosure
1
Enclosure Material
Steel
Enclosure Rating
1
Fuse Type
Plug
Line Rated Current
30 A
Mounting Type
Surface
NEMA Size
1
Number of Phases
3 Phase
Number of Poles
1 Pole
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
Size
4 in
TC Connection
AWG 14...AWG 8 COPPER-AWG 12...AWG 8 ALUMINIUM
Type
Fusible disconnect;Single Throw Safety Switch
Voltage
120 Volt
Wire Size
AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium

Manufacturer Information

Brand
Square D
Sub Brand
Light duty

General Product Info

12-Digit UPC
785901115489
Environmental Conditions
GENERAL PURPOSE (INDOOR)
GTiN
00785901115489
Product UPC
78590111548

Dimensions

Depth
4 Inch
Height
7.63 Inch
Warranty Length
18 mth
Width
6.13 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
