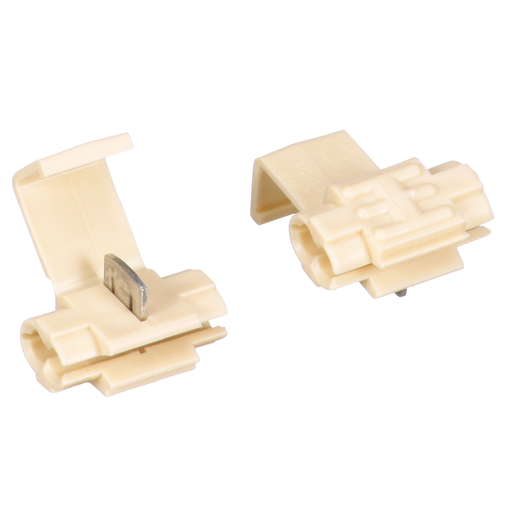

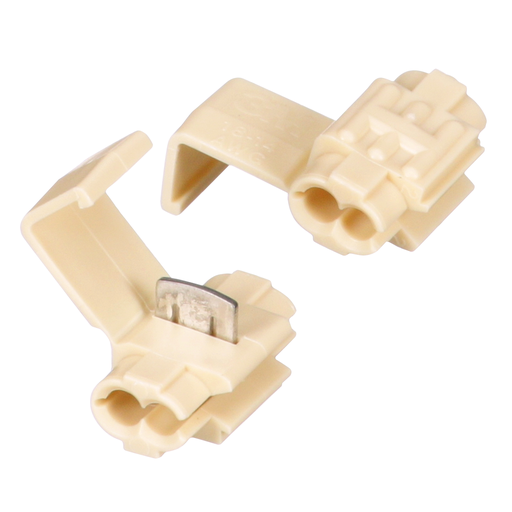

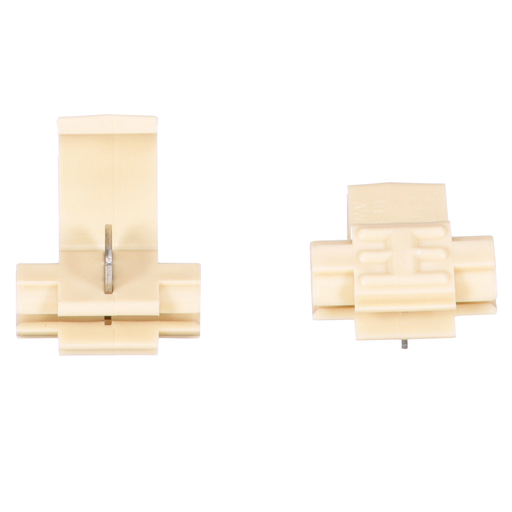

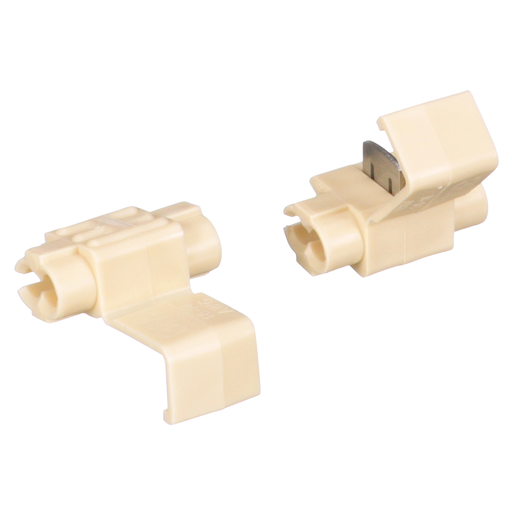

Product image for 3M 7000005870 3M™ Scotchlok™ IDC C
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

3M 7000005870 3M™ Scotchlok™ IDC C

Manufacturer: 3M | Catalog # 7000005870 | Echo Electric Part # 220320
$15.18/c (100 ea)
ea
Order in multiples of 5000 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Insulation Displacement Connector 564 is a double run connector for parallel splicing. It electrically connects two run (through) wires while insulating the connection. Polypropylene insulated and self stripping.

Technical Information

Conductor Size
18-14 AWG
Connection Type
Double Run Or Tap
Insulation Material
Polypropylene
Material
Plastic
Max Operating Temperature
194.0 degrees F
Temperature Rating
194 F
Type
Insulation Displacement
Voltage
32 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007061182
Color
White
GTiN
00054007061182
Product Type
Double Run
Product UPC
05400706118

Certifications and Compliance

Country of Origin
USA
Features
  • Beige polypropylene-insulated double run electrical connector for parallel splicing
  • Use for control circuits, fixtures, appliances, signals, PA systems and automotive/marine/RV wiring
  • Accommodates 18 to 14 AWG solid/stranded copper (tap) and 12 to 10 AWG solid/stranded copper (run)
  • Tin-plated brass element construction provides good conductivity and corrosion resistance
  • Operating temperature 194F (90C)
  • 600 volts max. building wire;
