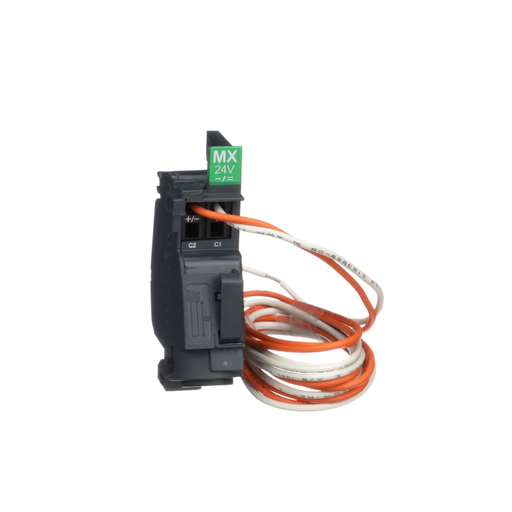

Product image for SQUARED LV426861 Pre-wired shunt tr
Email

SQUARED LV426861 Pre-wired shunt tr

Manufacturer: Square-D / Schneider | Catalog # LV426861 | Echo Electric Part # 220525
$481.92/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
This pre-wired MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 24 VAC 50/60Hz or 24VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.

Technical Information

Actuator
N/A
Applications
SHUNT TRIP (MX)
Enclosure
N/A
Frame
N/A
Mounting Type
Clip-On
Operating Temperature
N/A
Reset Type
N/A
Strip Length
8 mm
TC Connection
N/A
Trip Range
N/A
Trip Type
N/A
Type
ACCESSORY
Voltage
24 VAC//VDC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SQUARE D

General Product Info

12-Digit UPC
606485413177
GTiN
03606485413174
Product UPC
78590108619

Dimensions

Cable Length
3.28 ft
Length
1 m

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
