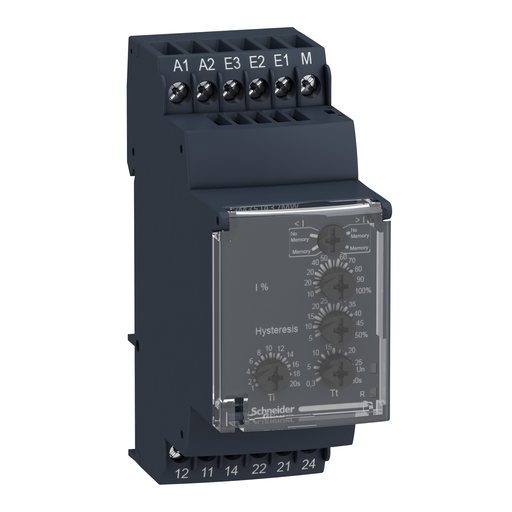

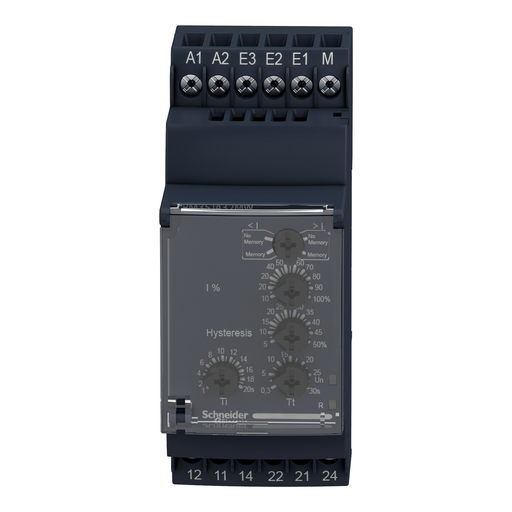

Product image for Square D RM35JA32MW 24 to 240 VAC/VDC 5 Amp 2CO Screw Terminal Current Measurement Relay
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

Email

Square D RM35JA32MW 24 to 240 VAC/VDC 5 Amp 2CO Screw Terminal Current Measurement Relay

Manufacturer: Square-D / Schneider | Catalog # RM35JA32MW | Echo Electric Part # 223746

$275.57/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
2 C/O
Applications
CURRENT CONTROL
Contact Configuration
2 C/O;5 A
Contact Material
Cadmium Free
Contact Rating
250 V AC/DC,5 A AC/DC
Enclosure
IP20 (TERMINALS) CONFORMING TO IEC 60529-IP30 (CASING) CONFORMING TO IEC 60529
Line Rated Current
5 A
Net Weight
0.13 kg
Operating Cycles
360
Operating Temperature
-20-50 Adegrees C
Resistance
0.005 OHM E3-M TERMINALS-0.015 OHM E2-M TERMINALS-0.05 OHM E1-M TERMINALS
Size
1.38 in
Standard
IEC 60255-6
Storage Temperature
-40-70 degrees C
TC Connection
SCREW TERMINALS, 1 X 0.5...1 X 4 MMA AWG 20...AWG 11) SOLID WITHOUT CABLE END-SCREW TERMINALS, 2 X 0.5...2 X 2.5 MMA AWG 20...AWG 14) SOLID WITHOUT CABLE END-SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA AWG 24...AWG 12) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.2...2 X 1.5 MMA AWG 24...AWG 16) FLEXIBLE WITH CABLE END
Type
Current control relay;Current control relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RM35JA

General Product Info

12-Digit UPC
389119405228
GTiN
03389119405225
Housing Material
Plastic
Product UPC
78590152332
Weight
0.13 kg

Dimensions

Warranty Length
18 mth
Width
35 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CSA,GL,GOST,UL
Country of Origin
Canada
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
