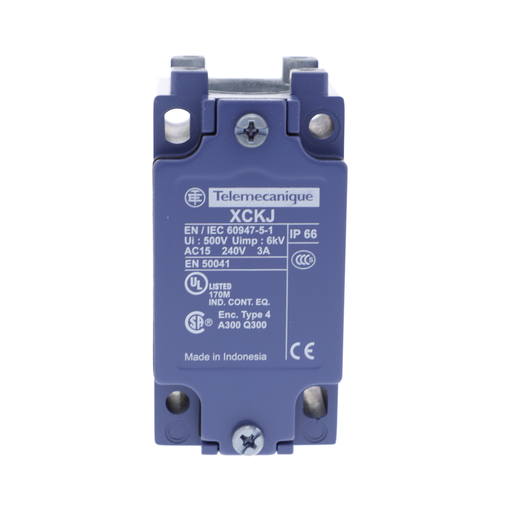

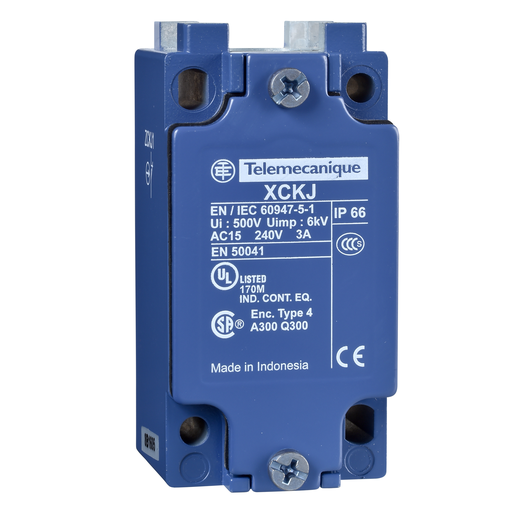

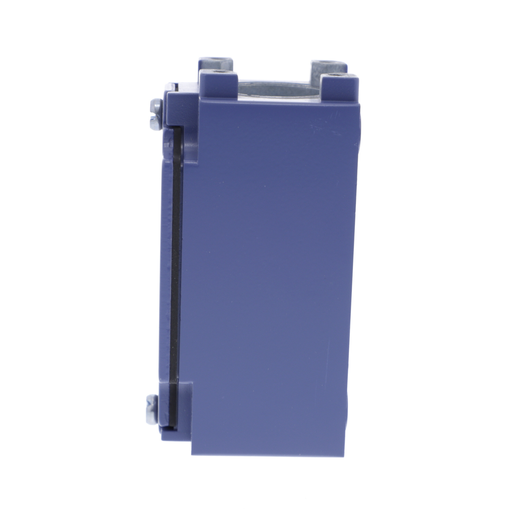

Product image for TES ZCKJ5 Limit switch body, Limit switches XC Standard, ZCKJ, fixed, with display, 1NC+1 NO, slow break, Pg13
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

TES ZCKJ5 Limit switch body, Limit switches XC Standard, ZCKJ, fixed, with display, 1NC+1 NO, slow break, Pg13

Manufacturer: TESENSOR | Catalog # ZCKJ5 | Echo Electric Part # 227918
$106.77/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts and a Pg 13.5 cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Technical Information

Action
Slow-break, break before make
Amperage
10 Amp
Applications
XCKJ
Body Material
Metal
Body Type
Fixed
Cable Entry
1 entry tapped for Pg 13.5 cable gland
Contact Configuration
1 NC + 1 NO
Contact Material
Silver Plated Contacts
Enclosure
IP65
Net Weight
0.32 kg
Number of Poles
2 Pole
Number of Steps
1 1
Operating Cycles
5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25...70 Adegrees C FOR STANDARD ENVIRONMENT10...120 Adegrees C FOR HIGH TEMPERATURE-40...70 Adegrees C FOR LOW TEMPERATURE
Size
1.73 in
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS, CLAMPING CAPACITY: 1 X 0.5...2 X 2.5 MMA
Type
Limit switch body
Voltage
3 A 240 Volt, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A

Manufacturer Information

Brand
Telemecanique
Sub Brand
ZCKJ

General Product Info

12-Digit UPC
785901646136
Environmental Conditions
HIGH TEMPERATURELOW TEMPERATURESTANDARD ENVIRONMENT
GTiN
03389110646139
Product UPC
78590164613
Weight
0.71 lb

Dimensions

Depth
44 mm
Height
89-89 mm
Warranty Length
18 mth
Width
40 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Indonesia
