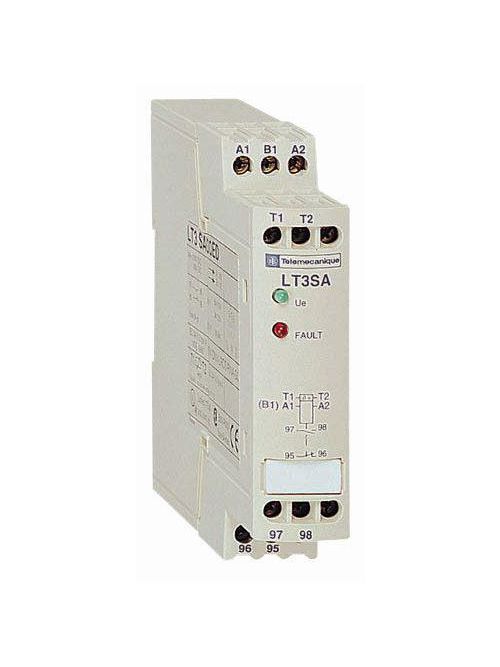

Product image for Square D LT3SA00M 115/230 VAC 5 Amp 1NO 1NC Rail Mounting Automatic Reset Overload Relay
Image thumbnail 0
Image thumbnail 1
Email

Square D LT3SA00M 115/230 VAC 5 Amp 1NO 1NC Rail Mounting Automatic Reset Overload Relay

Manufacturer: Square-D / Schneider | Catalog # LT3SA00M | Echo Electric Part # 227946
$332.11/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
TeSys LT3 thermistor protection unit for use with PTC probes, with automatic reset and fault indicator on front, dual voltage supply 115 or 230V AC 50/60Hz. To be used with a combination of PTC probes impedance lower than 1500 Ohm at 25°C, the trip impedance zone is 2700-3100 Ohm, the automatic reset impedance zone is 1500-1650 Ohm. It provides 2 auxiliary contacts 1NO+1NC for fault signaling. DIN rail mounting, connections by cage terminals. PTC thermistor probes DA1TT, DA1TS available (to be ordered separately). Multi-standards certified (IEC, UL, CSA), Green Premium compliant (RoHs/Reach).

Technical Information

Applications
FAULT INDICATION, VOLTAGE INDICATION
Contact Configuration
1 NC + 1 NO DUAL VOLTAGE
Input Voltage
1500 ohm
Net Weight
0.22 kg
Operating Temperature
-25-60 Adegrees C
Reset Type
AUTOMATIC RESET
Resistance
1500-1650 ohm
Size
100 MM,100 MM,22.5 MM
Standard
IEC 60034-11,IEC 60947-8,VDE 0660
Storage Temperature
-40-85 degrees C IEC 60068-2-1,-40-85 degrees C IEC 60068-2-2
Type
THERMISTOR PROTECTION UNITS

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LT3SA

General Product Info

12-Digit UPC
785901688228
Product UPC
78590168822

Dimensions

Depth
100 mm
Height
100 mm
Warranty Length
18 mth
Width
22.5 mm
