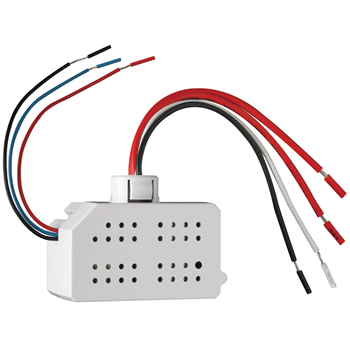

Product image for Pass & Seymour PWP-120277 120/230/277 VAC 24 VDC 225 mA Universal Voltage Power Pack
Email

Pass & Seymour PWP-120277 120/230/277 VAC 24 VDC 225 mA Universal Voltage Power Pack

Manufacturer: Pass & Seymour / Legrand | Catalog # PWP-120277 | Echo Electric Part # 243340
$55.80/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Universal voltage power packs consist of a transformer and high-current relay in one small unit. In addition to primary high input, power packs have a secondary output of 24VDC, 114mA which provides operating power to sensors. Upon sensing motion or insufficient light, sensors electrically close an internal circuit and send 24VDC back to the power pack. Power packs can switch a maximum 20 Amps of fluorescent lighting are available for both 120V and 277V systems..

Technical Information

Applications
Commercial
Enclosure
Thermoplastic, UL Flame Class Rating 94 V0
Operating Temperature
0 to 35C Deg
Type
Universal Voltage Power Pack
Voltage
277 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007197808
Environmental Conditions
20 to 90 PCT
GTiN
00785007197808
Product UPC
78500719780

Dimensions

Diameter
4.8 Inch

Certifications and Compliance

Country of Origin
China
Features
  • Self-contained power supply relay system.
  • Efficient switching power supply providing optimized current output based on number of sensors.
  • 1/2\" snap-in nipple attaches to standard electrical enclosures through 1/2\" knock outs providing easy installation.
  • UL 2043 plenum rated for cost-effective installation.
  • LED indicates status of relay or if there is a low-voltage overcurrent.
  • Constructed with environmentally friendly materials and is RoHS-compliant.
Eco-Benefit Information
  • LEED Contribution: Yes
