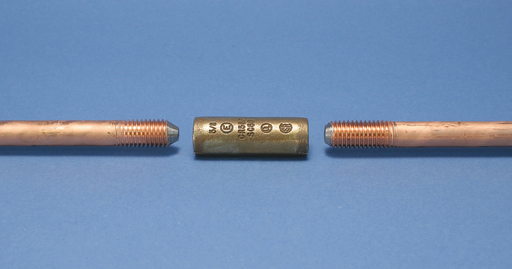

Product image for Erico 634400 Copper-Bonded Ground Rod, Threaded, 1" dia, 10', 10 mil Plating, 22.1 lb
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Erico 634400 Copper-Bonded Ground Rod, Threaded, 1" dia, 10', 10 mil Plating, 22.1 lb

Manufacturer: Erico, Inc | Catalog # 634400 | Echo Electric Part # 243603
$354.00/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
nVent ERICO copper bonded rods combine the strength of steel for ease of installation and molecularly bonded copper, with roll threading process for long lasting corrosion resistance. 1" x 10' ground rod with 10 mil plating thickness.

Technical Information

Material
Steel
Standard
CULus®
Tensile Strength
80,000 PSI
Thread Size
1 UNC
Type
Copper Bonded Ground Rod, Sectional

Packaging

Standard Packaging Qty
3 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856306412
GTiN
00782856306412
Weight
10.04 kg

Dimensions

Length
10-10.00 Foot

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certifications
CSA 46866,CULus
Features
  • Cold-rolled threads with continuous, unbroken grain flows preserve copper coating and are stronger than cut threads
  • 99.9% pure electrolytic copper coating
  • Rods have a high carbon steel core and tip that provide superior strength when driving
  • Copper coating will not crack when bent or tear when driven
  • Minimum copper coating of 10 mils on rods listed to UL® 467
  • nVent ERICO name, length, diameter and part number is roll-stamped within 12\" (304,8 mm) of chamfered end
  • UL logo and control number where applicable stamped on each rod for easy inspection after installation
Certifications
  • cUL CSA C22.2 No. 41
  • UL ANSI/UL 467
  • CSA CSA C22.2 No. 0, CSA C22.2 No. 41
  • CSA-US ANSI/UL 467
