Klein 69409 Line Splitter 10x

Manufacturer: Klein Tool | Catalog # 69409 | Echo Electric Part # 250539
$19.99/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 13 to 21 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

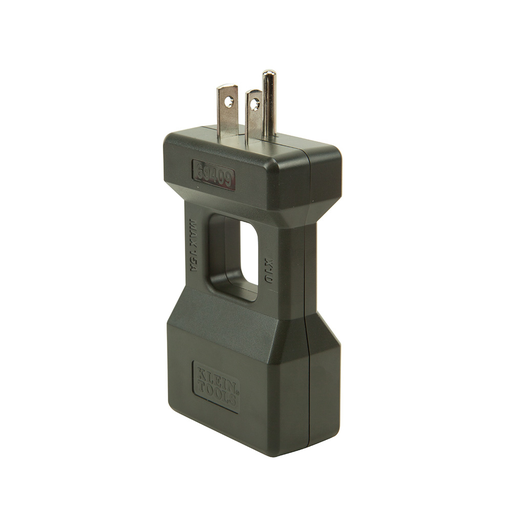

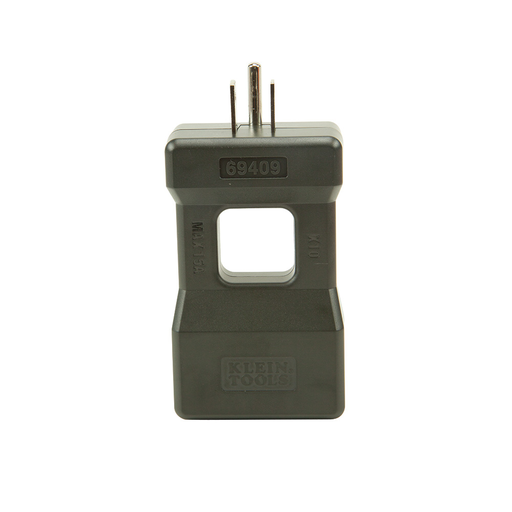

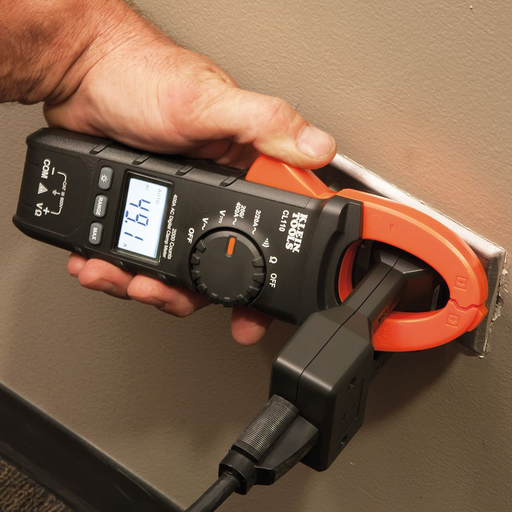

The Klein Tools 69409 Line Splitter separates hot from neutral and ground wires on standard 120-Volt outlets so that current measurements can be made with a current clamp. Without the Line Splitter, the current clamp measures the load current going in both directions, effectively cancelling the measurement. The Line Splitter has a standard measurement section and ten-times multiplier section for use with less accurate or higher ranged clamp meters. It was designed for use with Klein Tools clamp meters but will also function with many other manufacturers' clamp meters.

Technical Information

Applications
Use with Klein Clamp Meters
Type
10X

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644694097
GTiN
00092644694097
Used With
Klein Clamp Meters
Weight
0.244 lb

Dimensions

Depth
4.67 Inch
Height
4.67 Inch
Overall Length
4.67 in
Width
2.28 in

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Country of Origin
China
Features
  • Allows the measuring of current draw up to 15A without splitting the load's power cord
  • For use with all Klein clamp meters
  • Can be used to perform voltage checks with standard multimeter probes
  • Provides 10X measurement mode
  • For North American-style outlets only
  • Measures up to 15A
  • Measures up to 15A with +/- 3% Accuracy
Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do NOT use with current loads greater than 15A (which would be displayed as greater than 150A on a clamp meter using the Line Splitter 10x).
  • Do not use if Line Splitter 10x appears damaged in any way; do not use if wet, intended for indoor use only.
  • Always wear approved eye protection.
