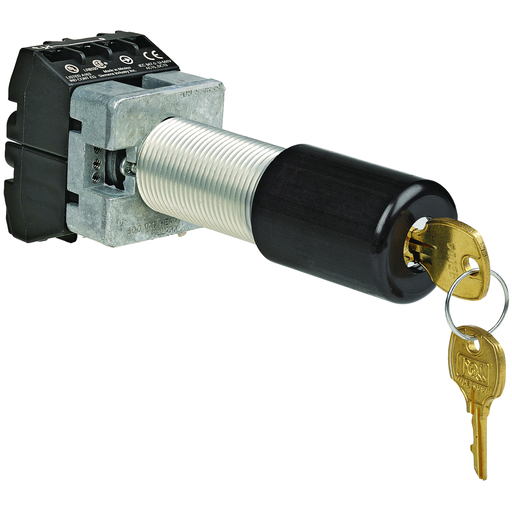

KLRK GOL39R632D SWITCH, 3P KEY SEL

Manufacturer: Killark | Catalog # GOL39R632D | Echo Electric Part # 259448
$1,021.82/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.

Technical Information

Action
SP
Actuator
3 Position
Amperage
10 Amp
Applications
Braking Control
Contact Configuration
2 NO, 2 NC
Contact Rating
60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
Number of Poles
1 Pole
Size
1-1/4" H x 1-1/4" W x 5-9/16" L
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Type
Extended Ratchet Rubber Boot
Voltage
600 VAC

Manufacturer Information

Brand
Killark Electric
Sub Brand
Killark

General Product Info

12-Digit UPC
783936226538
Color
Black
GTiN
00783936226538
Product UPC
78393622653

Dimensions

Height
1-1/4 Inch
Length
6.31 Inch
Width
2.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Operators are all aluminum except for certain movable parts which are stainless steel.
  • All other parts such as screws are either stainless steel or plated steel.
  • Threaded bodies are all 3/4-14 NPSM thread.
  • Control stations can be grouped into a single assembly thus reducing installation time and cost.
  • Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
